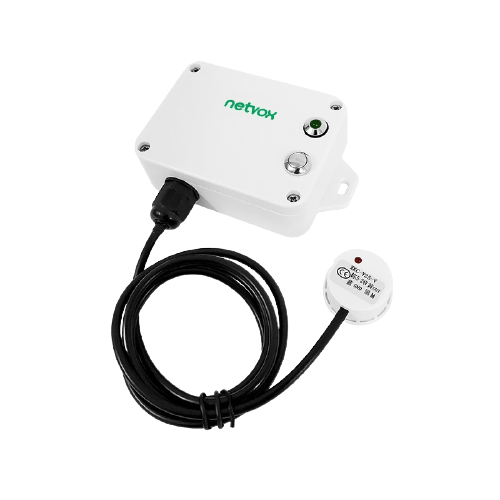

R718VA Wireless Flush Toilet/Washing Liquid Bottle/Toilet Paper Detection Sensor

Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
TX Power
Chipset
Sensors

SG$ 237.27 SG$ 237.27 237.26500000000001 SGD

US$ 175.00

This combination does not exist.

R718VA is a device to detect the status of toilet water, hand sanitizer level, presence or absence of tissue. This device is connected with a non-contact capacitive sensor can be mounted to the exterior of the container, without direct contact with the object to be detected, which may detect the current water level of positions mounted, or the presence or absence of liquid soap or toilet paper; the detected data is transmitted to other devices through the wireless network. It uses the SX1276 wireless communication module.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

R718VA is a device to detect the status of toilet water, hand sanitizer level, presence or absence of tissue. This device is connected with a non-contact capacitive sensor that can be mounted to the exterior of the container, without direct contact with the object to be detected, which may detect the current water level of positions mounted or the presence or absence of liquid soap or toilet paper; the detected data is transmitted to other devices through the wireless network. It uses the SX1276 wireless communication module.

Features

Adopt SX1276 wireless communication module

2 ER14505 battery AA SIZE (3.6V / section) parallel power supply

Non-contact capacitive sensor

Equipment body protection grade IP65/IP67 (optional), and the sensor probe part protection grade is IP67

The base is equipped with a magnet that can be attached to the iron object.

Compatible with LoRaWANTM Class A

Frequency hopping spread spectrum technology

Configuration parameters can be configured through third-party software platforms

Data can be read and alerts can be set via SMS text and email (optional)

Applicable to third-party platforms: Actility / ThingPark / TTN / MyDevices / Cayenne

Low power consumption and long battery life

Note*: Battery life is determined by the sensor reporting frequency and other variables. Please refer to http://www.netvox.com.tw/electric/electric_calc.html

On this website, users can find various types of battery life time in different configurations.

Specifications for R718VA Wireless Flush Toilet/Washing Liquid Bottle/Toilet Paper Detection Sensor

Frequency band	AS923 or AU915 or EU868 or US915
Waterproof	IP67
Class	Class A
Power type	2 X 3.6V ER14505 AA
Sleep Power consumption	30uA
Rx Sensitivity	-136dBm
TX Power	16dBm
Chipset	SX1276
Sensors	Ultrasonic
