R718WB2 Wireless Water Leak Detector with Rope Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Cable length
  • Sensors

SG$ 481.93 SG$ 481.93 481.9311 SGD

US$ 370.00

This combination does not exist.

Add to Cart

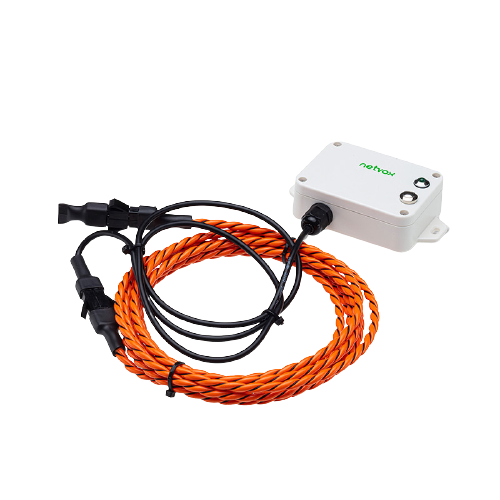

Netvox R718WB is a LoRaWAN™ device compatible with LoRaWAN™ protocol (class A). When the R718WB sensor detects the leak, it will send an alarm message to the gateway. R718WB carries 1-gang water rope sensor. It uses SX1276 LoRaWAN™ wireless communication module.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

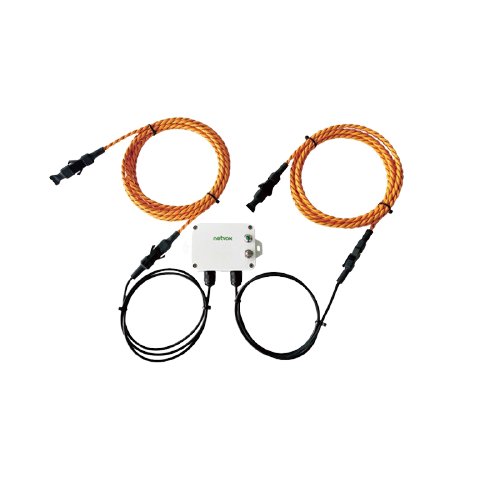

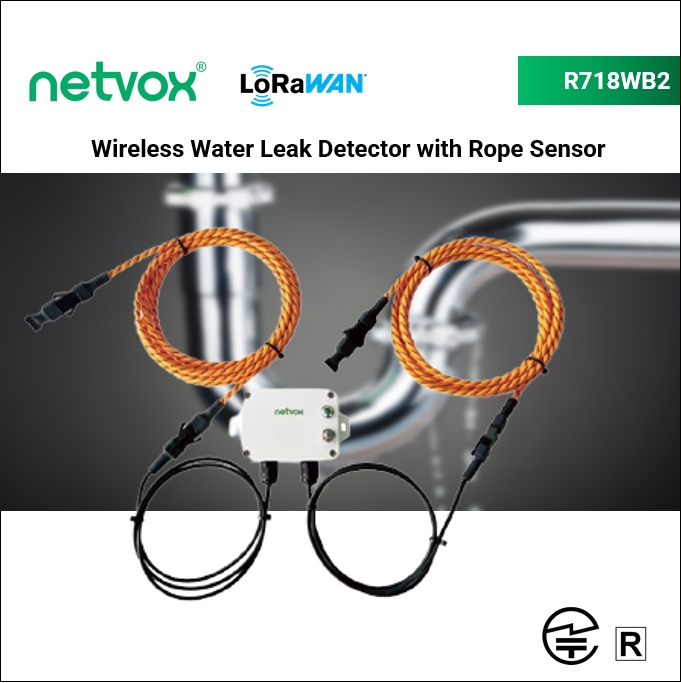

Netvox R718WB2 is a LoRaWAN™ device compatible with LoRaWAN™ protocol (class A). When the R718WB2 sensor detects the leak, it will send an alarm message to the gateway. R718WB2 carries a 2-gang water rope sensor. It uses SX1276 LoRaWAN™ wireless communication module.

Frequency Range: AU915-928，AS923



    Features

    • Wireless Range of 10km
    • LoRaWAN™ Class A Compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life:
    ⁻Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    ⁻At This Website, Users Can Find Battery Life Time For Varier Models At Different Configurations.
    • Over-The-Air Updates (Future)
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data

       And Set Alerts Via SMS Text And Email (Optional)

    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X  Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
    • IP Rating Level: IP67

              Specifications for R718WB2 Wireless Water Leak Detector with Rope Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP67
              Class Class A
              Power type 2 X 3.6V ER14505 AA
              Sleep Power consumption 20uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range VW-1
              TX Power 16dBm
              Chipset SX1276
              Cable length 3~300m
              Sensors 2 x Water leak Detector with Rope sensor
