R720A-Temperature and Humidity Sensor

  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • TX Power
  • Chipset
  • Battery Capacity
  • Cable length

SG$ 135.14 SG$ 135.14 135.138 SGD

US$ 105.00

This combination does not exist.

Add to Cart

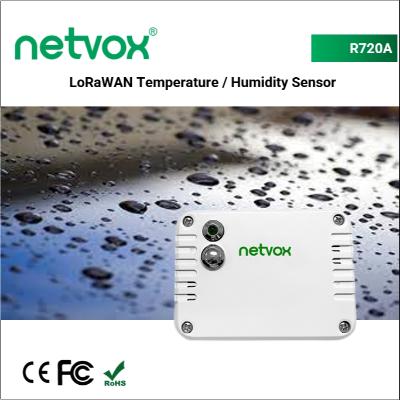

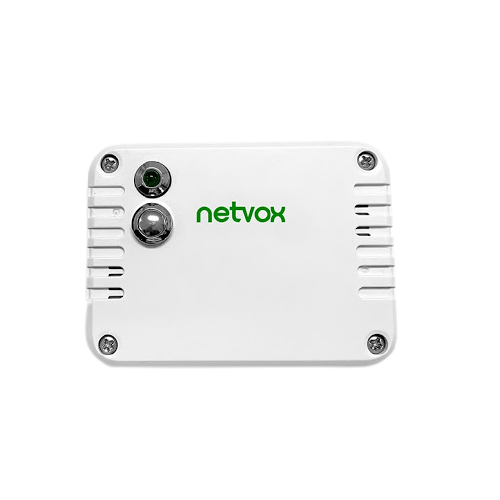

The R720A is a wireless communication device that detects ambient air temperature and humidity. The R720A detects the temperature and humidity of the air and transmits the detected data to other devices via a wireless network using the SX1276 wireless communication module.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

It can detect the movement or vibration of the device, send a signal to the gateway for processing, and externally connect one NTC thermistor to detect the surface temperature of the measured object. It uses the SX1276 wireless communication module.


    Features

    • LoRaWAN™ Class A compatible

    • Frequency Hopping Spread Spectrum (FHSS)

    • Improved interference immunity

    • Improved power management for longer battery life

    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)

    • Battery Life*2:

    • ⁻Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html

    • ⁻At this website, users can find battery life time for varier models at different configurations.

    • Over-the-air updates (future)

    • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)

    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

    • R718X  series carry magnets which can be attached to ferromagnetic materials and objects

    *1. Actual range may vary depending on environment.


    *2. Battery life is determined by sensor reporting frequency and other variables

              Specifications for R720A-Temperature and Humidity Sensor

              Frequency band AS923 or AU915 or CN470 or KR920 or US915
              Sensor Temperature/Humidity
              Waterproof IP68
              Class Class A
              Power type Battery
              Sleep Power consumption 22uA
              Rx Sensitivity -136dBm
              TX Power 16dBm
              Chipset SX1276
              Battery Capacity 2 x 3.6V ER14505 AA
              Cable length NA
