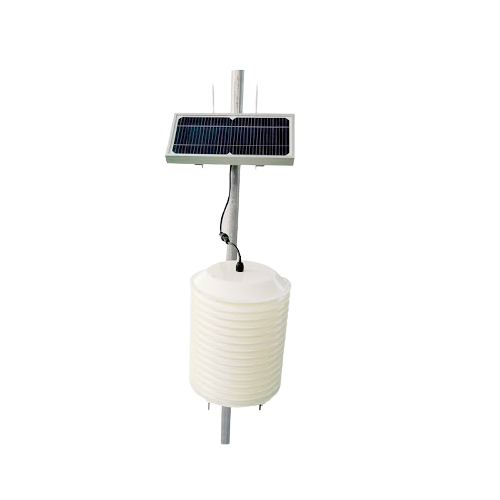

R72616 Wireless Outdoor PM2.5/Temperature/Humidity Sensor with a Solar Panel

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Sensors

SG$ 1,027.69 SG$ 1,027.69 1027.6855 SGD

US$ 789.00

This combination does not exist.

Add to Cart

The R72616 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72616 has a PM2.5 sensor that detects the concentration of PM2.5 in the air.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

The R72616 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72616 has a PM2.5 sensor that detects the concentration of PM2.5 in the air.


                  Features


                  Temperature and humidity detection

                  Air particle concentration detection (PM2.5)

                  Adopt SX1276 wireless communication module

                  Solar panel charging function

                  Built-in lithium battery pack power supply

                  • LoRaWAN compatible

                  • Frequency Hopping Spread Spectrum (FHSS)

                  • Improved interference immunity

                  • Third-party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)

                  • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

                  • Uses SX1276 wireless communication module



                            Specifications for R72616 Wireless Outdoor PM2.5/Temperature/Humidity Sensor with a Solar Panel

                            Frequency band AS923 or AU915 or EU868 or US915
                            Waterproof IP67
                            Class Class A
                            Power type Battery + Solar panel
                            Sleep Power consumption 25mA
                            Rx Sensitivity -136dBm
                            Sensor Measurement Range 0~500 μg/m3
                            TX Power 16dBm
                            Chipset SX1276
                            Certification TELEC
                            Sensors PM2.5/Temperature/Humidity
