RA0710 Wireless Water Turbidity Sensor

  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 2,443.18 SG$ 2,443.18 2443.1812 SGD

US$ 1,802.00

This combination does not exist.

Add to Cart

RA0701 is a wireless communication device that detects the carbon monoxide content in ambient air. RA0701 can detect the concentration of CO in the air.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

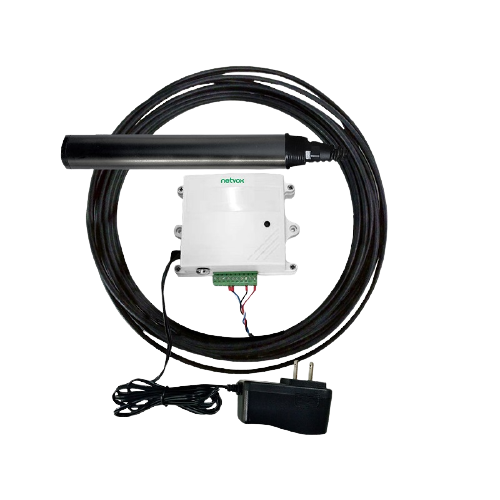

The RA0710 is connected to the ZS-206 integrated online turbidity sensor, and the ZS-206 is designed and manufactured using the principle of scattered light turbidity measurement. The LoRa module of the RA0710 communicates with the turbidity sensor in the form of RS485 communication to obtain the current turbidity signal value and display it through the wireless gateway.


    Features

    • Apply SX1276 wireless communication module

    • DC 12V adapter power supply

    • Turbidity detection

    • LoRaWAN™ Class A compatible

    • Frequency Hopping Spread Spectrum (FHSS)

    • Configuration parameters can be configured through a third-party software platform

    • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne


              Specifications for RA0710 Wireless Water Turbidity Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Class Class A
              Power type DC12V/1A
              Sleep Power consumption 50mA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 0-1000NTU
              TX Power 16dBm
              Chipset SX1276
              Sensors Tubidity+Temperature
