RAK Discover Kit

Frequency band

SG$ 242.69 SG$ 242.69 242.69140000000002 SGD

US$ 180.00

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.

FIND OUT MORE

Overview

The RAK Discover Kit is a complete LoRaWAN® gateway solution. It comes pre-assembled, out of the box. You only need to flash the latest Firmware to have a fully functioning Gateway. It is quick to deploy and open to a developer (Raspbian based).

Complete documentation of this product can be found on its documentation page in our knowledge base.

Features

Fully functioning LoRaWAN® Multichannel Concentrator module (SX1301)
Tx Power up to 27dBm
Rx Sensitivity down to -139dBm
Improved noise resistance due to improved RF chain filtering (Additional SAW)
Full LoRaWAN® 1.0.2 stack support
Supported bands: (EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920 and AS923)
Integrated Ublox MAX-7Q GPs Module
40pin female header (fully compatible with Raspberry Pi)
Redesigned heat sink for better thermal dissipation and reduced thermal noise

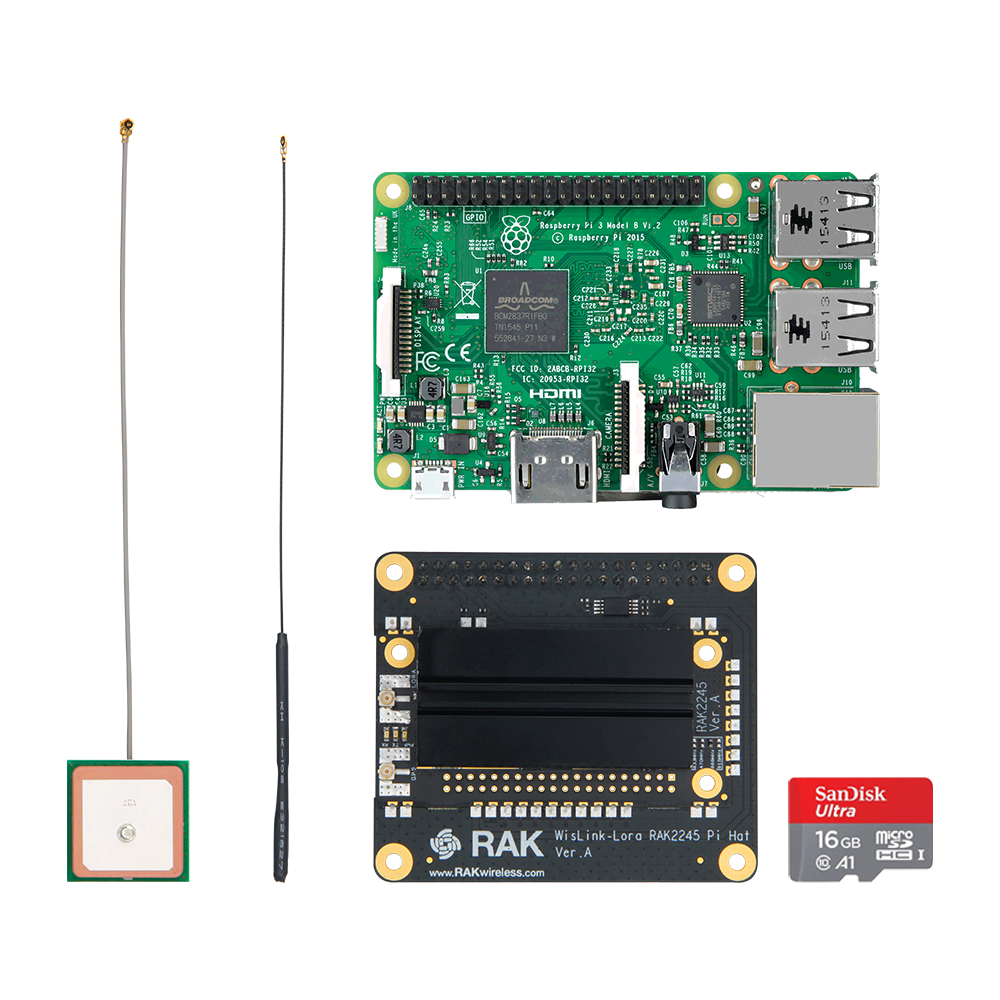

Comes with a Raspberry Pi 3B+ the required antennas and an SD card.

Specifications for RAK Discover Kit

Frequency band	AS923 or AU915 or EU868 or US915
