Overview

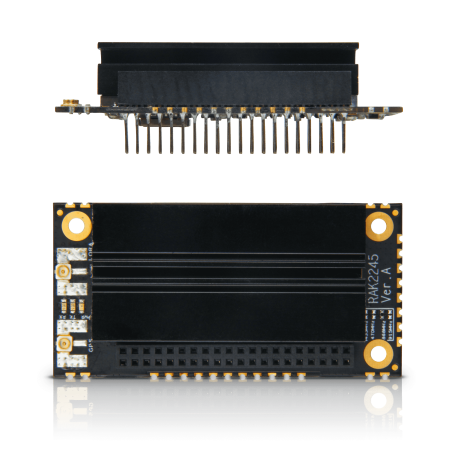

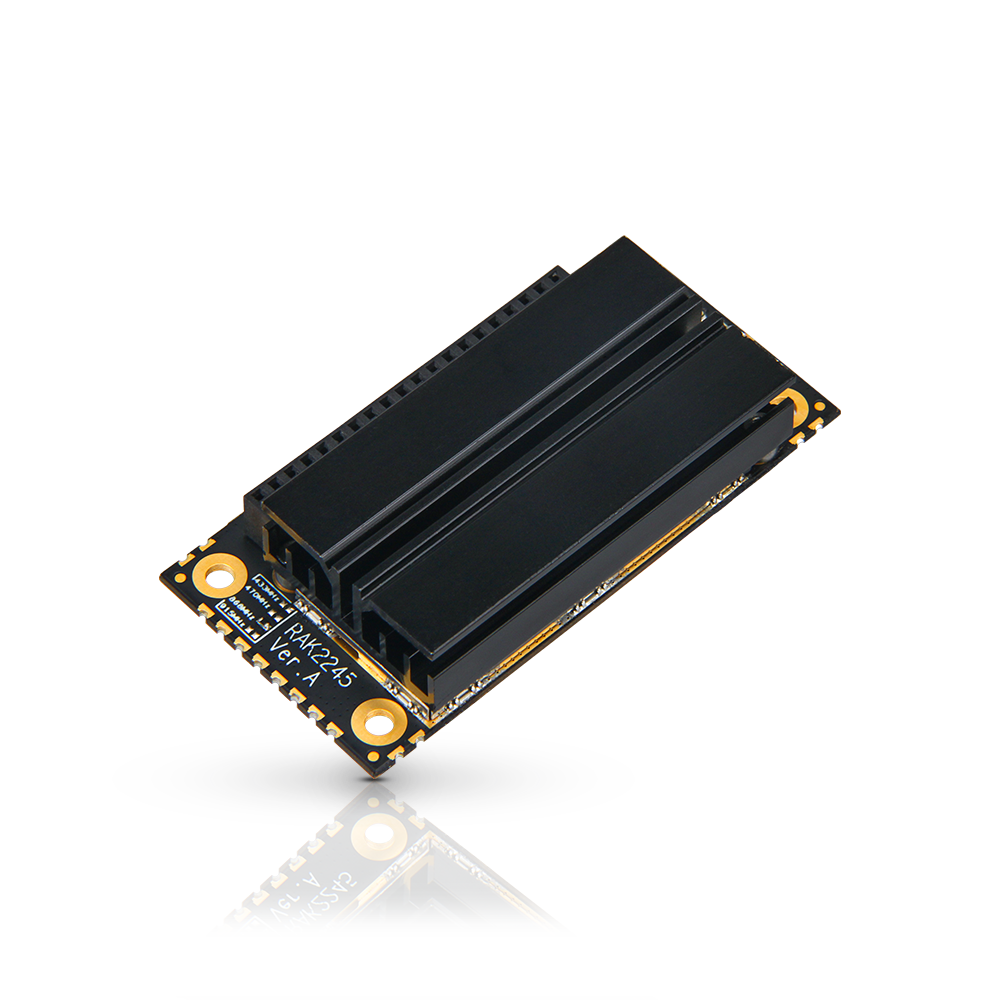

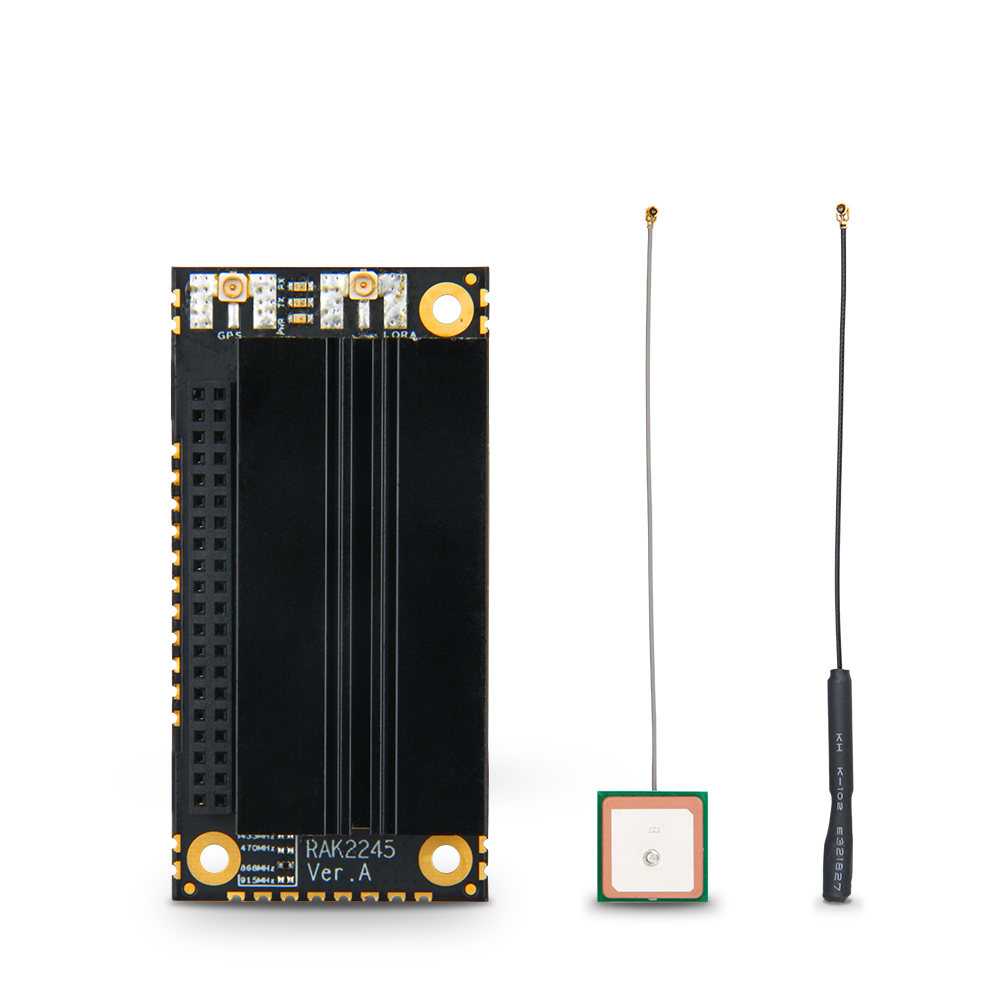

RAK2245 96Boards has the same compact form factor and great performance as the other RAK2245 modules. It is fully compatible with modules supporting the 96Boards standard, such as Nitrogen and Orange Pi. Thus it is an easy way to integrate LoRaWAN® into an already existing solution utilizing a 96Boards compatible IoT module.

Features

• SX1301 + 2x SX1257/58 provide 8 uplink and 1 downlink LoRa® demodulation paths

• Max Tx Power of 27dBm

• RX sensitivity of -139dBm

• Improved noise resistance due to improved RF chain filtering (Additional SAW)

• Full LoRaWAN® 1.0.2 stack support

• Supported bands: (EU433, CN470, IN865, EU868, AU915, US915, KR620, AS920 and AS923)

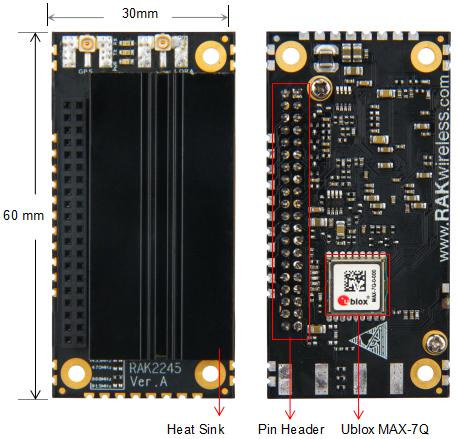

• Integrated Ublox MAX-7Q GPs Module

• 40 pin header hole mount (2mm pitch, compatible with 96Boards)

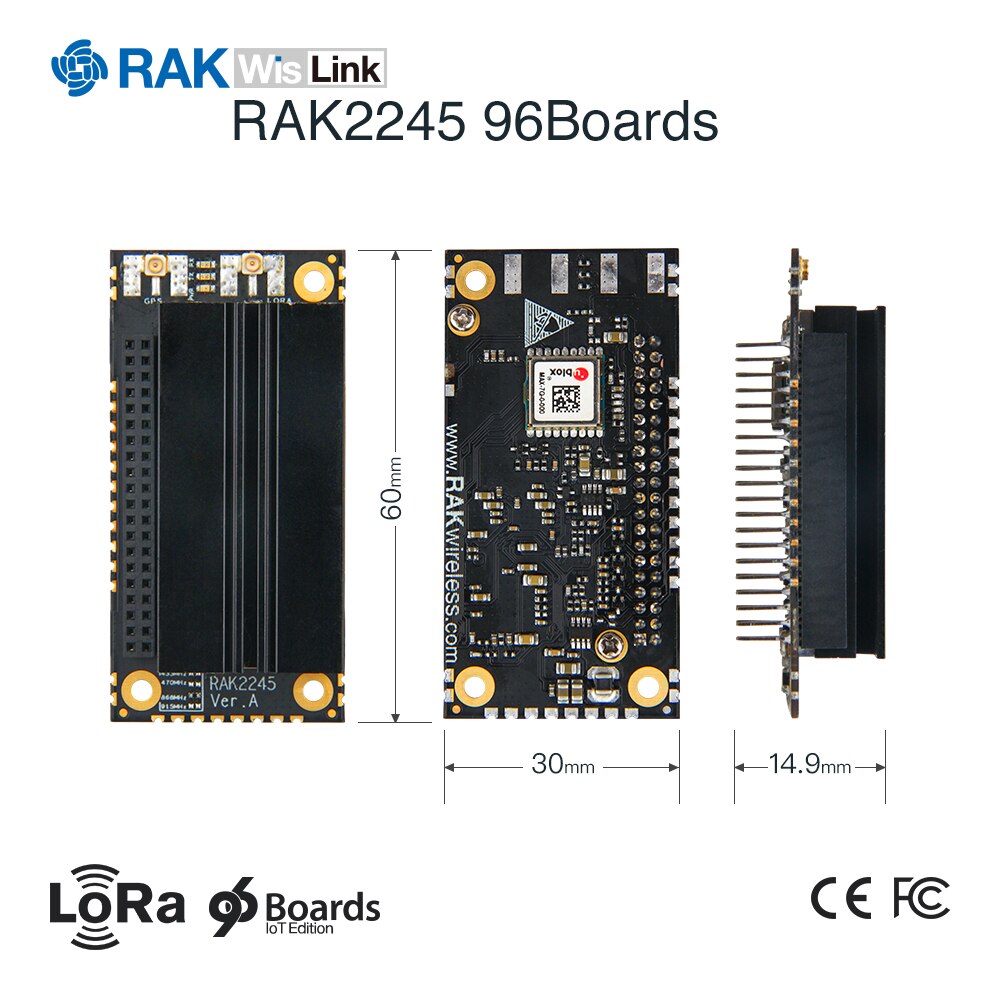

• Smallest LPWAN concentrator at the time of its release - 60mm(L) x 30mm(W) x 14.9mm(H)

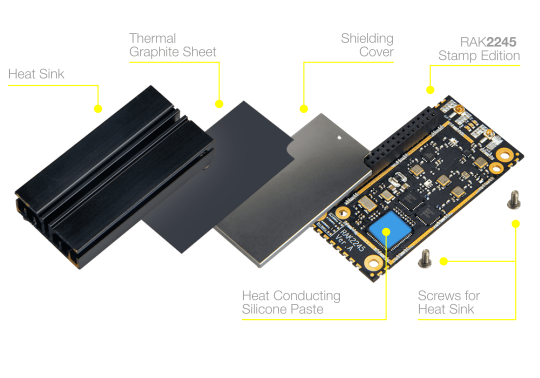

• Redesigned heat sink for better thermal dissipation and reduced thermal noise
