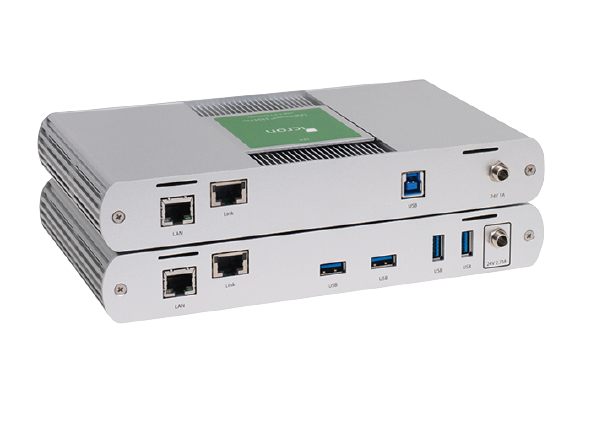

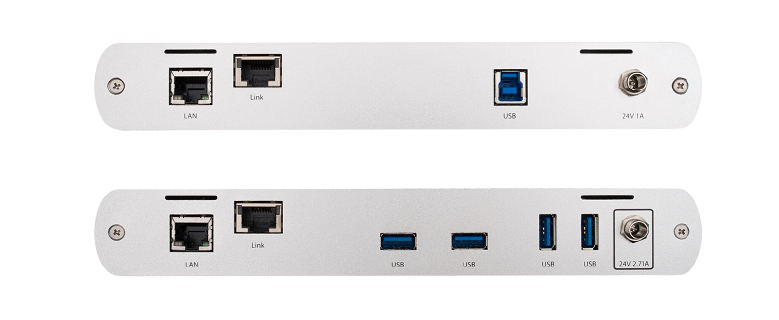

Raven 3104 Pro 4-port USB 3.2, 100m CAT 6a/7 Extender System
The Icron Raven 3104 Pro extender system includes:
Local Extender (LEX)
Remote Extender (REX)
USB 3.1 Gen 1 Cable
LEX 24V DC 1A International Power Adapter
REX 24V DC 2.71A International Power Adapter
2 x Country Specific Power Cords
Quick Start Guide
Two year warranty
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The Icron USB 3-2-1 Raven™ 3104 Pro is Icron’s latest innovation in ExtremeUSB-C™ technology. The Raven 3104 Pro allows simultaneous extension of USB 3.2 Gen 1, 2.0, and 1.1 protocols across a single link with auto negotiated communication between hosts and devices for maximum interoperability and ease of use. The Raven 3104 Pro is specially designed and enhanced for better performance with USB 3 cameras and video capture devices, offering support for higher frame rates and resolution support than standard Raven products. The Raven 3104 Pro is easy to install; simply plug and play (no software drivers required) and it works with all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™.
Additionally, this ExtremeUSB-C™ based USB 3.2 extender system is FCC/CE Class B certified and backward compatible for use with all USB 3, 2, and 1 devices such as conference cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, USB to video converters and audio devices.
Features
USB 3.2 Gen 1 data rate up to 5Gbps
Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
Four available 3.2 Gen 1 ports
Up to 1.2A (6W) per USB port
100/1000 Ethernet channel; LAN pass-through
Single cable, CAT 6a/7 up to 100m
Point-to-point connection
Supports all USB transfer types (Control, Interrupt, Isochronous, and Bulk)
Optimized for camera and video capture devices
FCC and CE (Class B) compliance
Two-year warranty
ExtremeUSB-C™ suite of features:
Transparent USB extension supporting USB 3, 2 and 1
True plug and play; no software drivers required
Works with all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™
Specifications for Raven 3104 Pro 4-port USB 3.2, 100m CAT 6a/7 Extender System
| USB Extender | |
|---|---|
| USB standard | USB 3.1 |
| Distance | 100m |
| Uncategorized | |
| Power Adapter | Europe or Australia or Japan or North America or Unit Kingdom |
| USB ports | 4 USB ports |
| Transmission Media | CAT 6a/7 |
| Power Adapter Location | LEX and REX |
