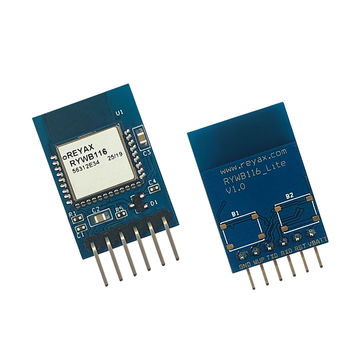

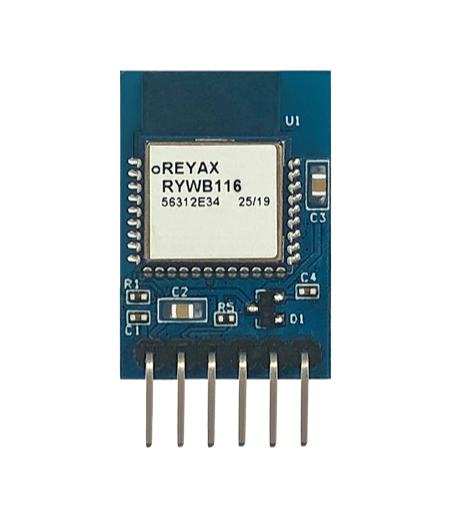

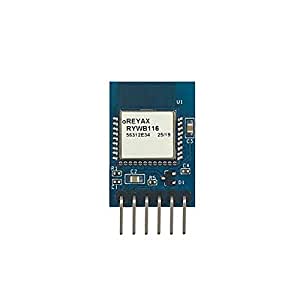

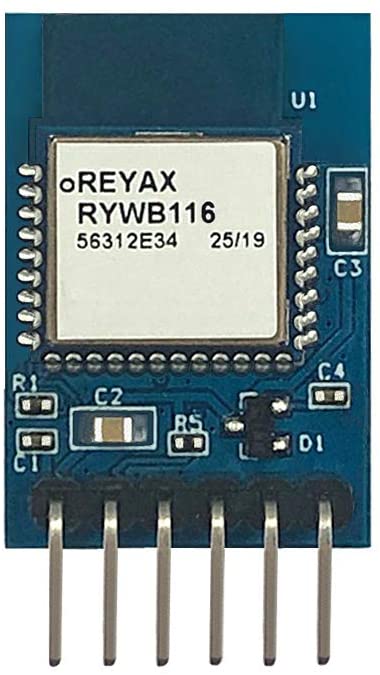

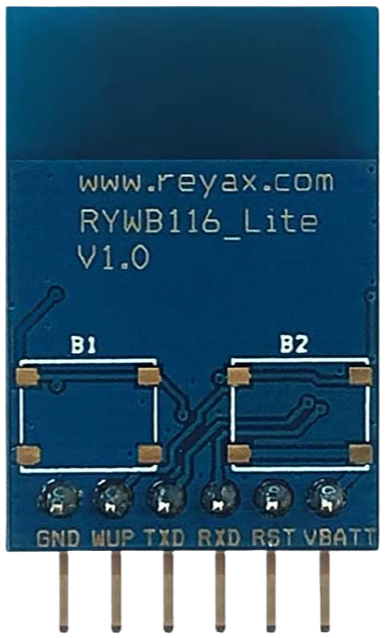

REYAX 2.4GHz Wi-Fi BLE 5.0 Module
REYAX’s RYWB116_Lite DIP module provides a comprehensive multi-protocol wireless solution including 802.11 b/g/n, dual-mode Bluetooth 5.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
REYAX’s RYWB116_Lite DIP module provides a comprehensive multi-protocol wireless solution including 802.11 b/g/n, dual-mode Bluetooth 5.
Feature
Compliant to single-spatial stream IEEE 802.11 b/g/n, Bluetooth 5.
Co-existence of multiple wireless protocols managed by an internal protocol arbitration manager.
Ultra-low power consumption with multiple power modes to reduce the system energy consumption.
Leading edge RF performance providing long range and higher throughputs.
Support for 20 / 40 MHz channel bandwidths.
Transmit power up to +21dBm with integrated PA.
Wi-Fi receive sensitivity as low as -98.5 dBm.
BT receive sensitivity as low as -95 dBm.
Support for Client mode, Access point mode, Wi-Fi Direct and enterprise security.
Support for concurrent Wi-Fi, Bluetooth 5.
8.9 mA transmit current in BT 5 mode, 2 Mbps data rate
Operating temperature: -40°C to +85°C
Applications
Specifications for REYAX 2.4GHz Wi-Fi BLE 5.0 Module
| Package | SMT or DIP |
