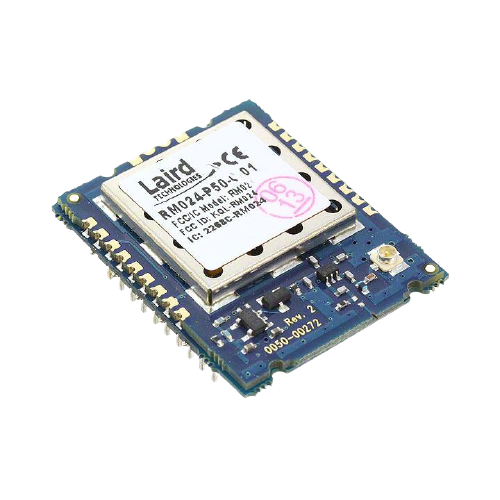

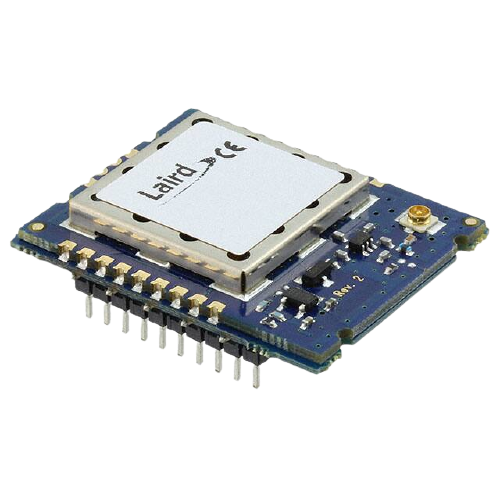

RM024-P10-C-30 RAMP Transceiver Module

Variant

SG$ 45.76 SG$ 45.76 45.7648 SGD

US$ 35.50

This combination does not exist.

Add to Cart

RAMP 2.4GHz OEM Transceiver, SMT, 3.3V TTL Serial, 125mW, u.FL Jack

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird

We simplify the rapid integration of wireless connectivity with innovative solutions, world-class manufacturing and unparalleled customer support. Our culture creates a fast moving, flexible work environment attracting employees who focus on providing accelerated profitable growth. Our vision is to be the technology behind every innovative and reliable wireless solution by 2025.

FIND OUT MORE

Overview

The RM024 RAMP module is based on Laird's LT2510 core technology, enhanced with a new RF front end for improved sleep, improved link budget, and switchable antenna output. With its field-proven FHSS air interface protocol, the RM024 rejects RF noise, excels in multipath scenarios, allows for co-located systems, and provides an extremely reliable communication link. It also provides a more robust, but simpler, link than ZigBee for RF applications that do not require a mesh topology.

Features

Retries and acknowledgments
Configurable network parameters
Multiple generic I/O
280 kbps or 500 kbps RF data stream
Idle current draw of 9.5 mA, sleep current of <1 uA (varies depending on sleep mode)
Software-selectable interface baud ranging from 1200 bps to 230.4 kbps
Upgradable FW through the serial port
Low cost, low power, and small size ideal for high volume, portable, and battery-powered applications
All modules are qualified for Industrial temperatures (-40°C to 85°C)
Advanced configuration available using Laird Connectivity’s Command Interface
Easy-to-use Laird Connectivity Configuration and Test Utility software
Switchable antenna output, either integrated antenna or external antenna through U.FL (RM024-S125-M, RM024-P125-M, RM024-S10-M, and RM024-P10-M radios only)
