WisLink Cellular Pi Hat

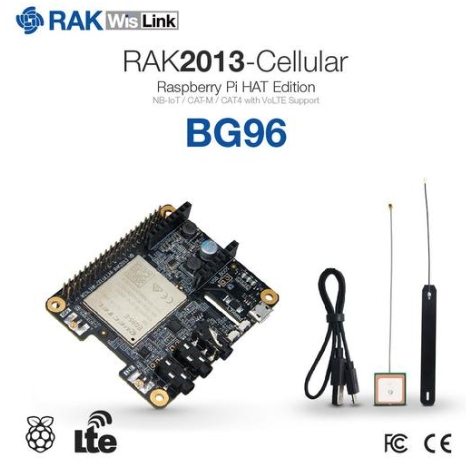

The RAK2013 Pi HAT is a Raspberry Pi 3B+ compatible cellular communication module. It is aimed at providing a Low Power Wide Area Network (LPWAN) connectivity to IoT devices. It has several configuration options of its onboard radio including the Quectel BG96/EG95. Thus it supports the following standards: 4G/LTE, Nb-IoT, CAT-M/CAT1/CAT4 Cellular.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview

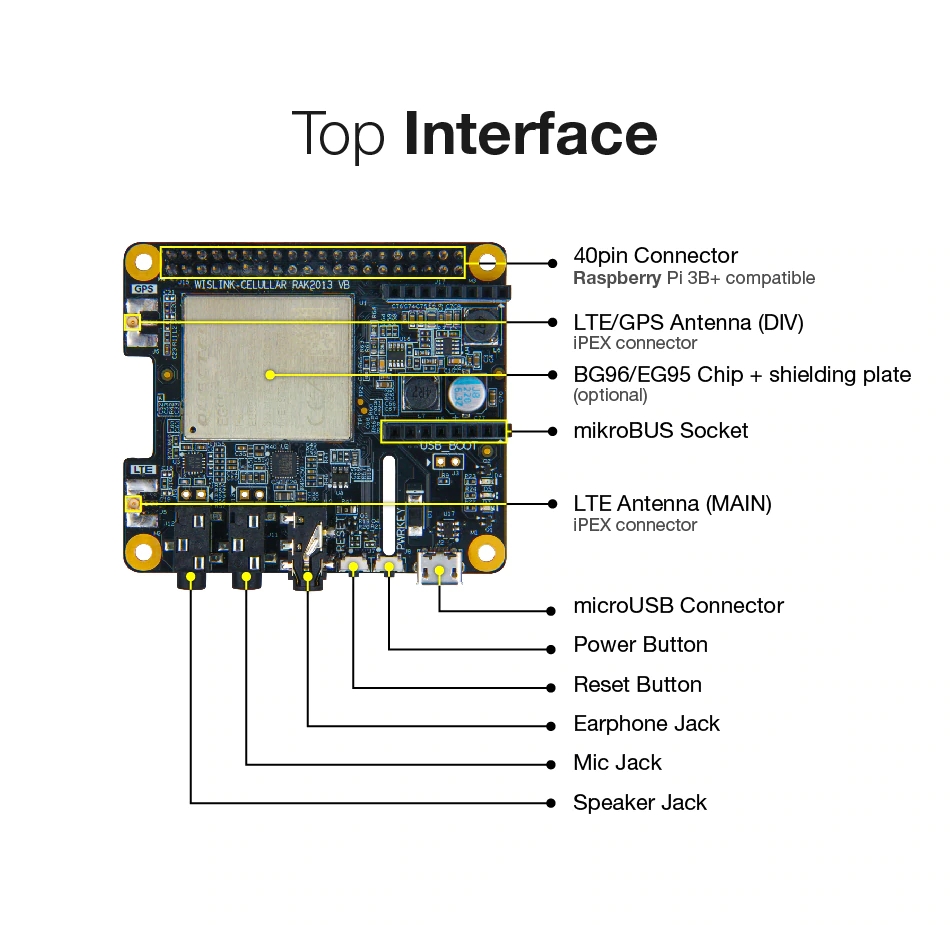

WisLink Cellular Pi Hat (RAK2013) is a Raspberry Pi 3B+ compatible cellular communication module. It is aimed at providing a Low Power Wide Area Network (LPWAN) connectivity to IoT devices. It has several configuration options of its onboard radio including the Quectel BG96/EG95. It supports the following standards: 4G/LTE, Nb-IoT, CAT-M/CAT1/CAT4 Cellular. Because of its integrated audio amp and codec, it is suitable for Voice over LTE (VoLTE) in carrier network scenarios where HD calls are a requirement. The necessary connectors for each type of operation are conveniently placed on one side of the board in order to provide easy access.
Features
Cellular support
Nb-IoT
LTE CAT-M1
LTE CAT1/CAT4

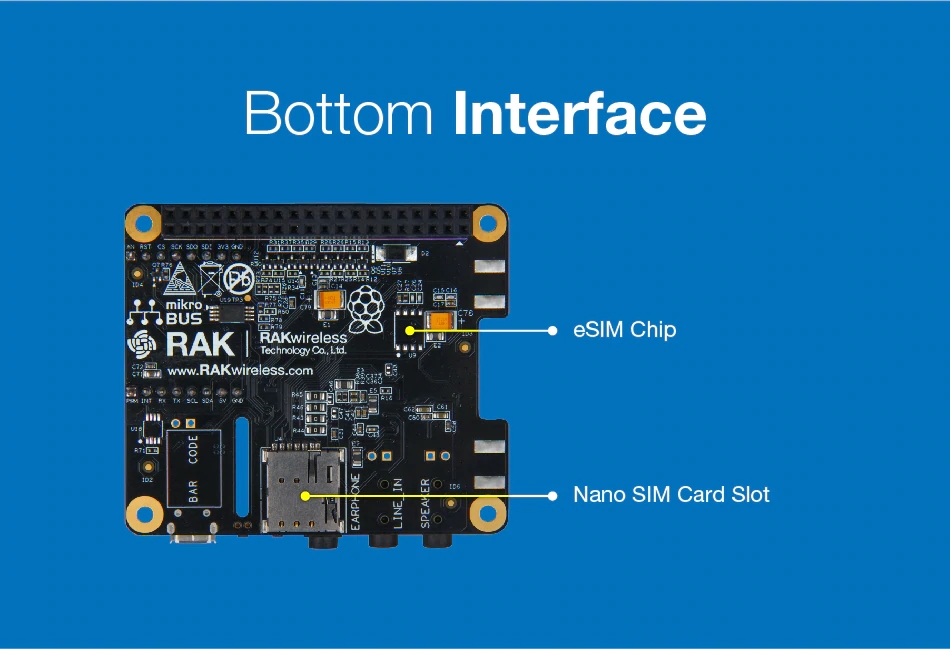

Support for both nano and eSIM
Integrated audio amp and codec for full VoIP support
Full compatibility with Raspberry Pi 3B+
Integrated mikroBUS header
GPS optional support (BG96 only)
Built-in EEPROM for storing of auto-configuration options
Specifications for WisLink Cellular Pi Hat
4G LTE | BG96 or EG95-E or EG95-NA |
