Overview

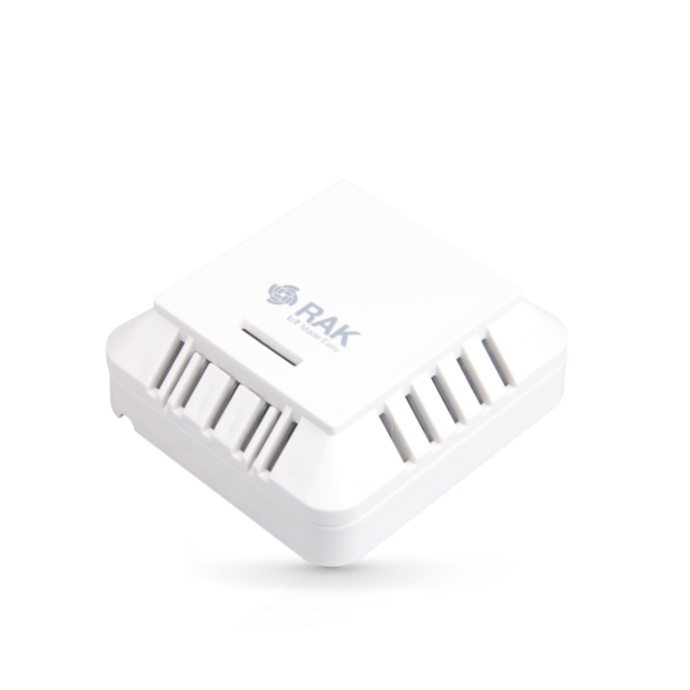

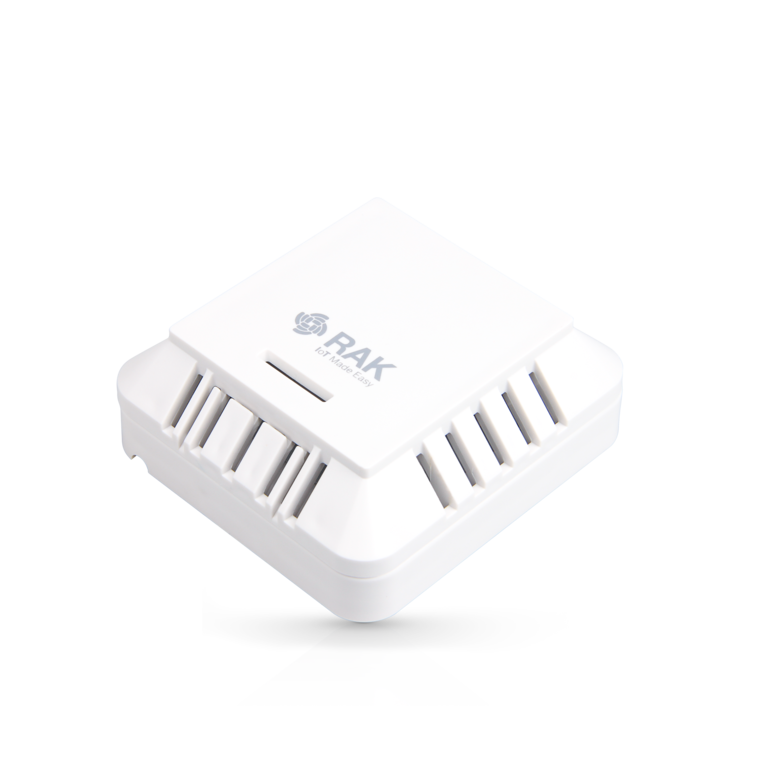

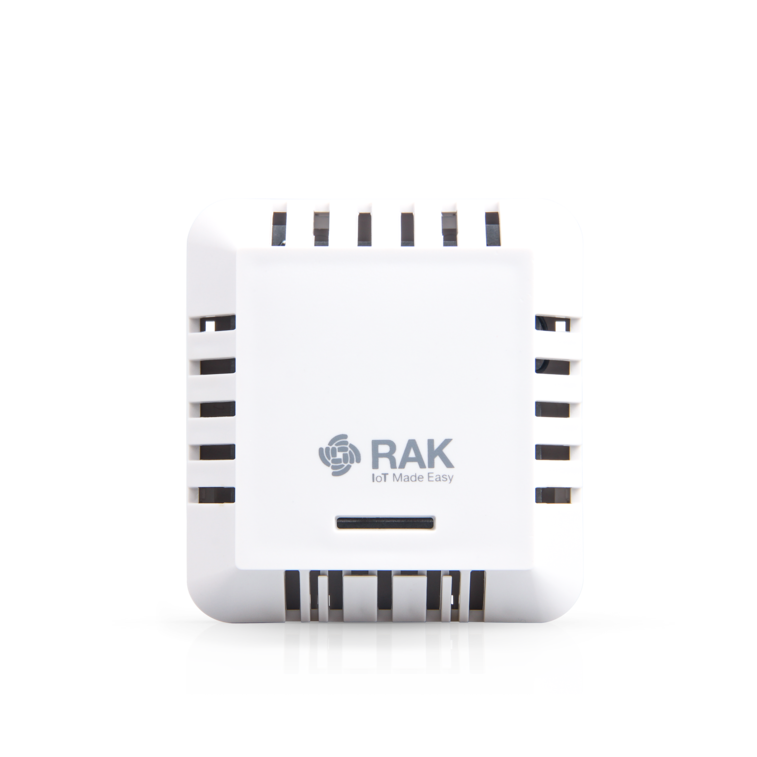

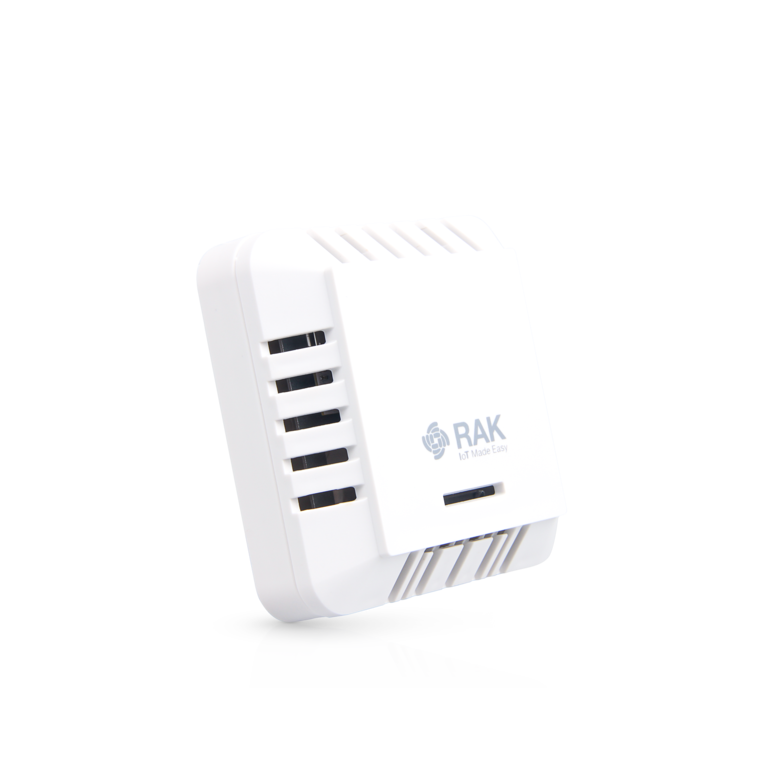

The WIsNode Sense Home (RAK7204) is an LPWAN node that serves as an environmental monitoring station. The high-precision sensors, can measure changes in temperature, humidity, gas pressure, and provide an indoor air quality index.

All the accumulated data can be sent to a LoRaWAN® gateway in order for it to be forwarded to the Cloud.

Because of its design, WisNode Sense Home can achieve a very low power consumption rate, which with the included non-rechargeable battery allows for 2+ years of operation.

The firmware has built-in functionality that allows the user to adjust the sampling interval of the sensors and the transmission cycle.

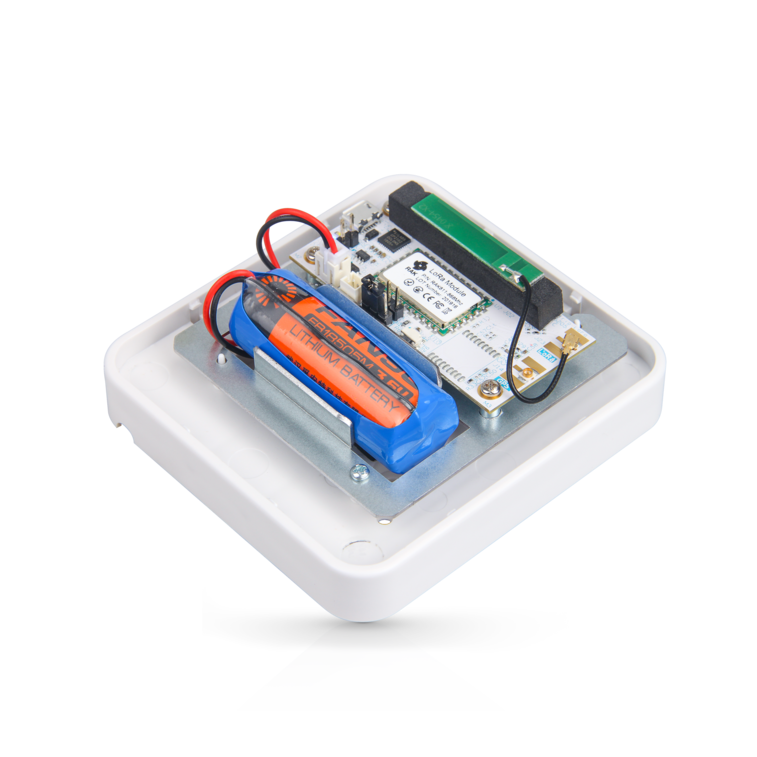

Last but not least, WisNode Sense Home adopts a highly integrated design, fitting the electronics and battery within 90mm x 85mm x 34mm casing.

Features

• Measurement of a variety of environmental parameters

• Temperature, Humidity, and Pressure

• Sensor

• BOSCH BME680 Integrated Environmental Unit

• Compact size

• Built-in LoRa® Antenna, swappable battery

• Easy to mount and maintain

• Low power operation

• Standby current of less than 15 uA

• Adjustable sampling and transmission interval

• Battery

• Replaceable 3500 mAh high capacity lithium battery with a battery life of more than 2 years

• LoRaWAN® 1.0.2 fully compliant
