Overview

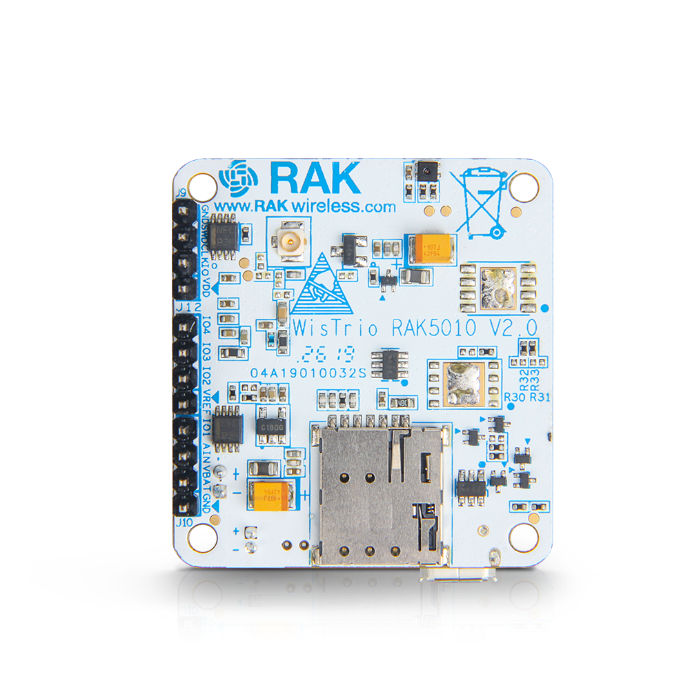

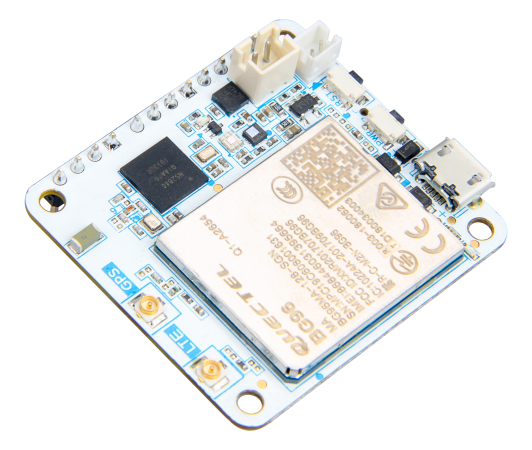

WisTrio NB-IoT Tracker Pro (RAK5010) is a tracker with integrated LTE CAT M1 & NB1, GPS, BLE, and sensors. It is built on the Quectel BG96 LTE CAT M1 & NB1 module, which has an integrated GPS receiver. The MCU running the board is a Nordic nRF52840 controller.

As it has both GPS and BLE it can be used for outdoor and indoor scenarios, where location-based services need to be present.

The built-in sensors for RAK5010 are temperature and humidity sensor, motion sensor, pressure sensor, and light sensor, while the RAK5010-M model features just the temperature and humidity sensor and 3-axis motion sensor for a reduced price. The extension IOs allow adding more sensors in addition to the onboard ones.

This board is particularly suitable to be used as a quick testing and prototyping tool for applications requiring NB-IoT connectivity. Application development supports the GCC environment.

Features

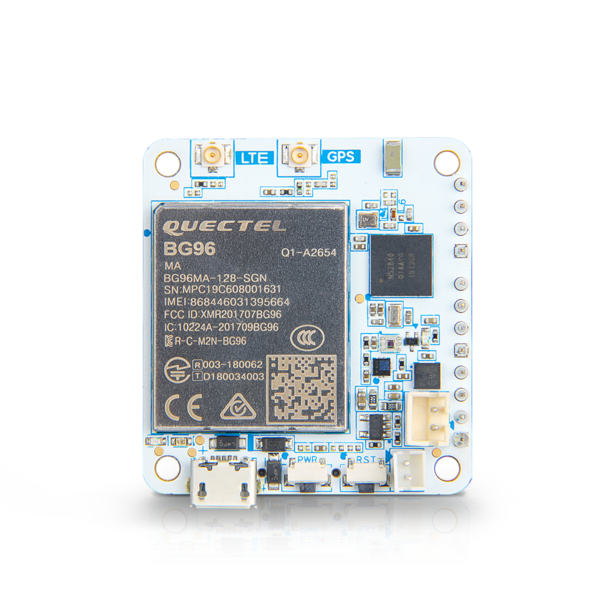

• Quectel BG96, with LTE CAT M1, LTE NB1, and GNSS
• Nordic nRF52840, with BLE5.0 and long-range BLE.
• nRF52840 integrates an ultra-low-power ARM Cortex-M4 (64Mhz) microcontroller
• Built-in sensors of RAK5010 model:
• Humidity and temperature sensor
• Pressure sensor
• 3-axis motion sensor
• Ambient light sensor
• Built-in sensor of RAK5010 model:
• Humidity and temperature sensor
• 3-axis motion sensor
• iPEX connectors for the LTE and GPS antenna and an onboard ceramic antenna for the BLE.
• nano-SIM and ESIM options.
• Can be powered by either Micro USB, 3.7V rechargeable battery, or a 5V Solar Panel Port
• Multiple interfaces, I2C, UART, GPIO, ADC
