Ag9205-S PD Module, High Efficiency, Isolated DC-DC Converter

  • Output Voltage
  • Role
  • Compliance
  • Temperature Range
  • Power module package
  • Build in Bridge
  • Power isolution
  • Protection
  • Input Voltage

SG$ 13.62 SG$ 13.62 13.615400000000001 SGD

US$ 10.00

This combination does not exist.

Add to Cart

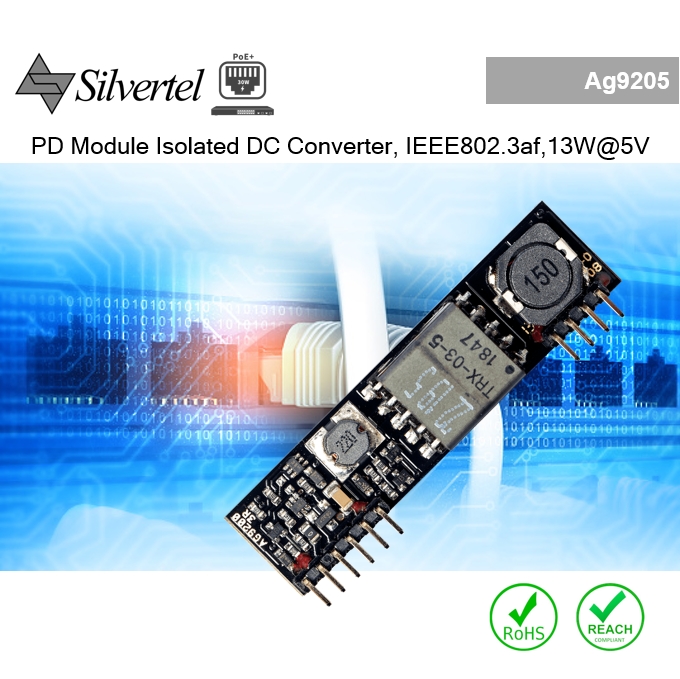

PD Module, High efficiency, Isolated DC-DC converter, IEEE802.3af compliant, 13W@5V, SIL.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).

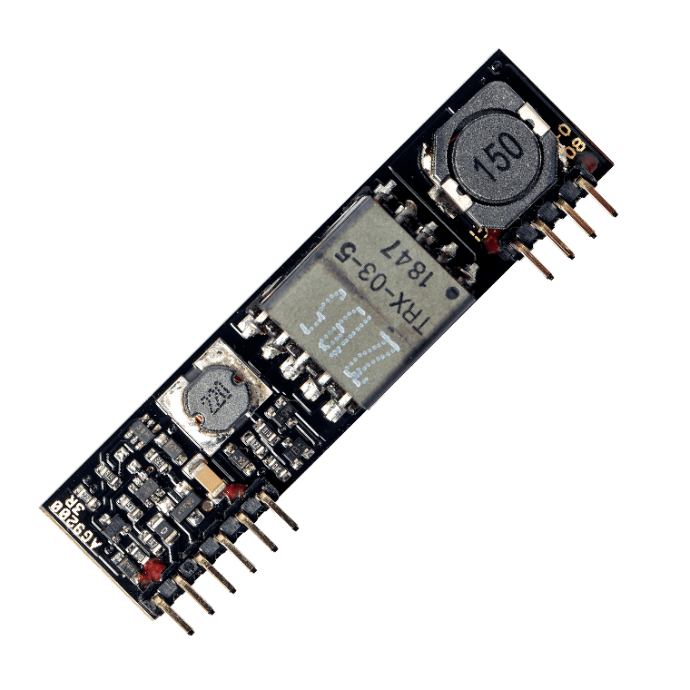

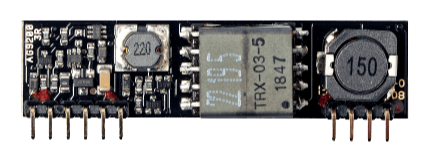

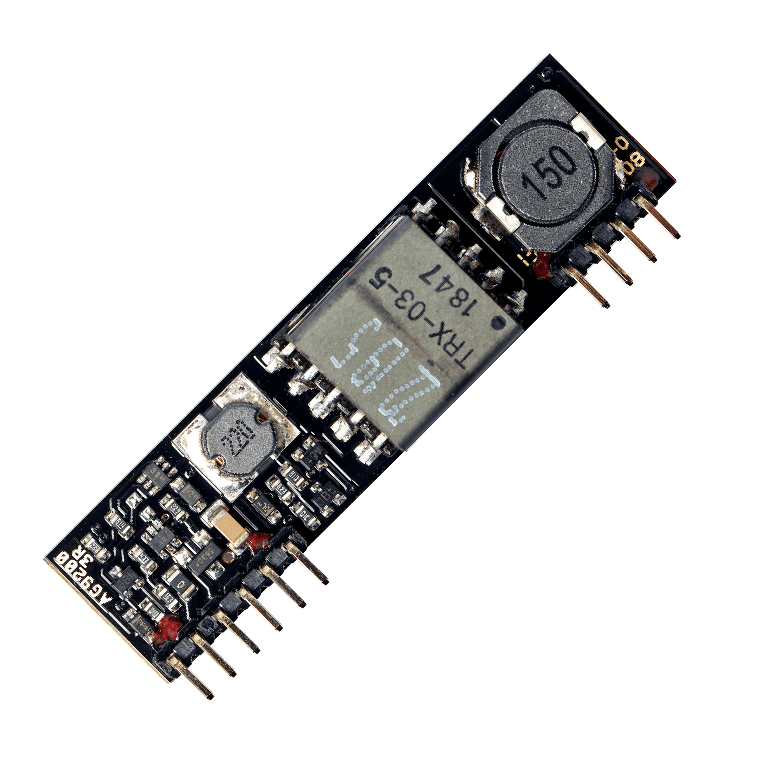

The Ag9205 is a PoE module designed for higher efficiency than standard Silvertel products. The module extracts power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power over Ethernet (PoE) standard. This is a total solution, including a 1.5kV isolation barrier between the input and output. The Ag9205S has been specifically designed to give more power at 5V output voltage than standard Ag9705 series parts.


  • IEEE802.3af compliant

  • Small Package Size – 56mm(L) x 18mm(W) x 14mm(H) Highly efficient DC/DC converter (up to 88% ~ 5V 13W)

  • Low output ripple and noise

  • Wide Input voltage range

  • Overload and short-circuit protection

  • Adjustable Output

  • 1500V isolation (input to output)

  • Simple integration

Specifications for Ag9205-S PD Module, High Efficiency, Isolated DC-DC Converter

Output Voltage 5V
Role PD
Compliance IEEE 802.3af 13W
Temperature Range Normal
Power module package SIL
Build in Bridge Yes
Power isolution 1500Vdc
Protection Overload and short-circuit
Input Voltage 36~57V
