Ag9330 PD Module, Triple input, Isolated DC-DC converter,

  • Role
  • Compliance
  • Output Voltage
  • Temperature Range
  • Power module package
  • Build in Bridge
  • Power isolution
  • Protection
  • Output Power
  • Input Voltage

SG$ 21.44 SG$ 21.44 21.44 SGD

US$ 16.00

This combination does not exist.

Add to Cart

PD Module, Triple input, Isolated DC-DC converter, IEEE802.3af compliant, 12-48Vdc & 24Vac, 12V out, DIL.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).

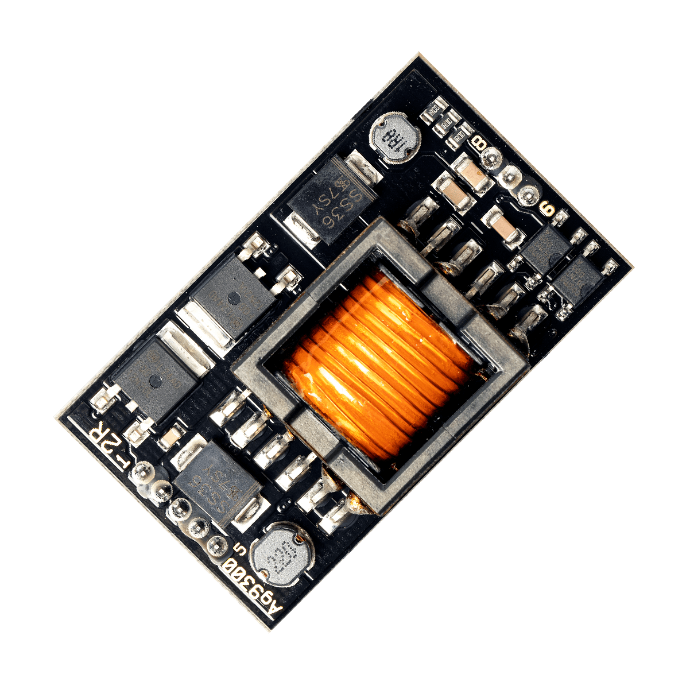

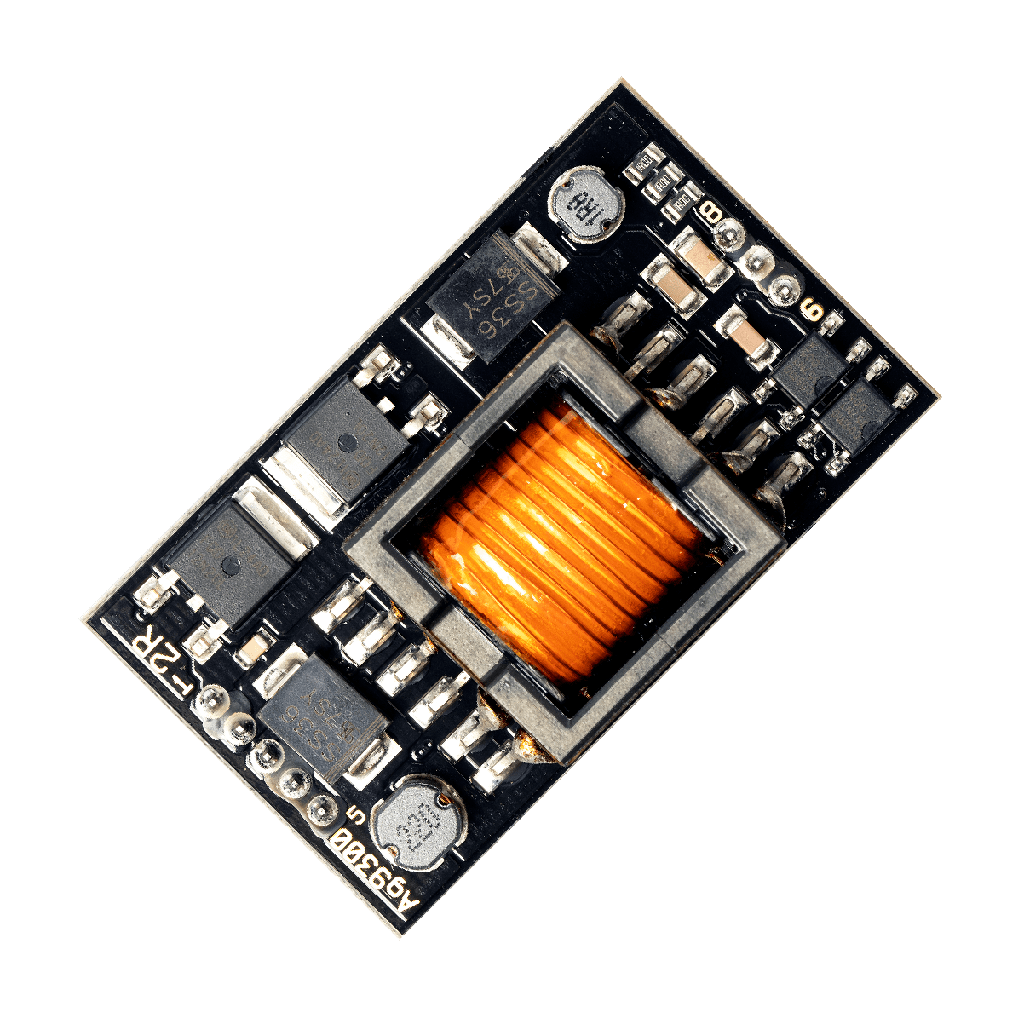

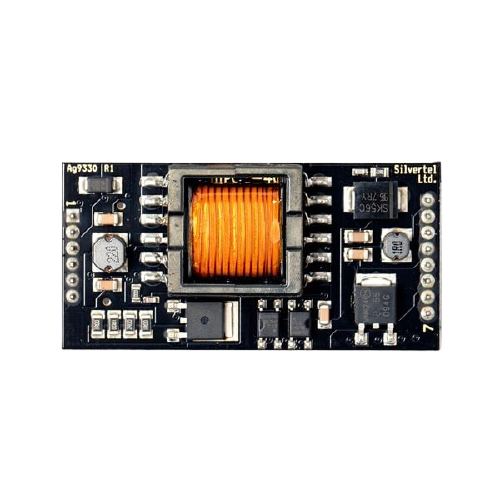

The Ag9330 Power-over-Ethernet (PoE) module is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3at PoE standard. With two additional auxiliary inputs, one for an auxiliary DC supply and the other for an auxiliary AC supply. This module is ideal for security cameras where 12Vdc or 24Vac is used. The Ag9330 has been designed to extract power from Power Sourcing Equipment (PSE) over a conventional twisted pair Category 5 Ethernet cable. The modules input conform to the IEEE803.2at standard for signature recognition and class programming. The high-efficiency DC/DC converter operates over a wide input voltage range with a low ripple and low noise output. The DC/DC converter also has built-in output overload, output short-circuit and over-temperature protection and provides a 1500Vdc (input to output) isolation barrier.


  • Triple Input module for POE, 12Vdc, and 24Vac

  • IEEE802.3at and IEEE802.3af compliant

  • Dual In-Line (DIL) package size – 60mm (L) x 30mm (W)

  • Overload and short-circuit protection

  • Adjustable Output

  • Thermal Cut Off

  • Single High-efficiency DC/DC converter

  • 1500Vdc isolation (input to output)

  • Silvertel “design-in” assistance

Specifications for Ag9330 PD Module, Triple input, Isolated DC-DC converter,

Role PD
Compliance IEEE802.3af/at
Output Voltage 12V and Adjustable
Temperature Range Normal
Power module package DIL
Build in Bridge No
Power isolution 1500Vdc
Protection Thermal, Overload and short-circuit
Output Power 30W
Input Voltage 7~15Vdc & 24Vac
