Ag9400 13W PD IEEE802.3af

  • Role
  • Compliance
  • Output Voltage
  • Temperature Range
  • Power module package
  • Build in Bridge
  • Channel
  • Power isolution
  • Protection

SG$ 12.24 SG$ 12.24 12.24 SGD

US$ 9.20

This combination does not exist.

Add to Cart

PD Module, Isolated DC-DC converter, Includes Bridge Rect diodes, IEEE802.3af compliant, 5V, 12V or 24V, SIL.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality.

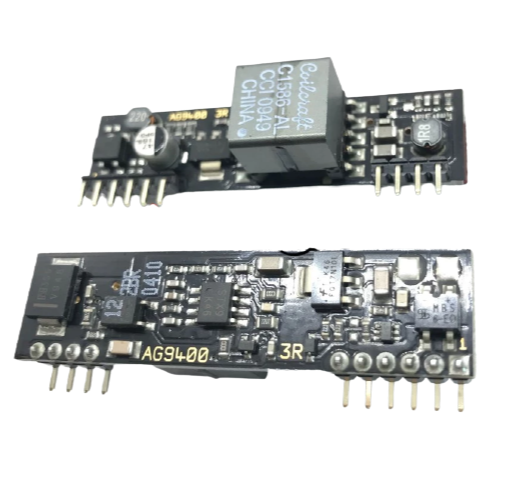

The Silvertel Ag9400 series of modules are designed to extract power from a conventional twisted-pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard.


The Ag9400 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The Ag9400 provides a Class 0 signature. The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.


  • IEEE802.3af compliant

  • Small SIL package size - 56mm (L) x 14mm (H)

  • Low output ripple and noise

  • Input voltage range 36V to 60V

  • Only one low-cost external decoupling capacitor required

  • Overload and short-circuit protection

  • Adjustable Output

  • High efficiency DC/DC converter

  • 1500V isolation (input to output)

  • Silver Telecom design-in assistance

Specifications for Ag9400 13W PD IEEE802.3af

Output Voltage 5V or 12V or 24V
Build in Bridge Yes or No
Role PD
Compliance IEEE 802.3af 13W
Temperature Range Normal
Power module package SIL
Channel Single Channel
Power isolution 1500Vdc
Protection Thermal, Overload and short-circuit
