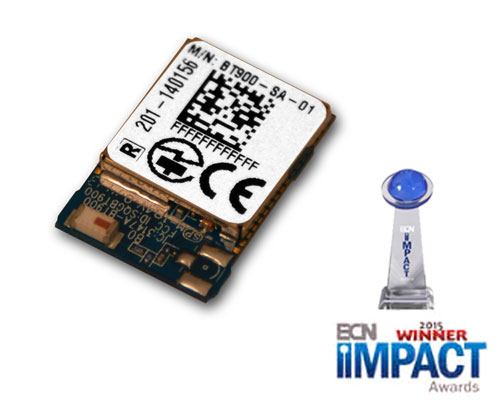

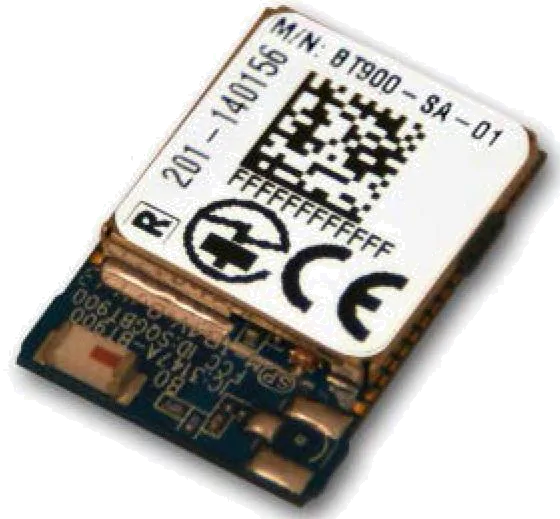

BT900 BTv4.0 dual Mode smartBASIC

  • Interfaces
  • BT Class
  • Other wireless
  • Operation Temperature
  • Stack on Board
  • Antenna
  • BLE connection
  • Bluetooth mode
  • Chipset

SG$ 22.33 SG$ 22.33 22.330000000000002 SGD

US$ 17.35

This combination does not exist.

Add to Cart

SMALL. SMART. SIMPLE. Laird's BT900 modules reduce the engineering burden and design risk of integrating Bluetooth and Bluetooth Low Energy into any OEM device. The BT900s tiny form factor, optimized power schemes and smartBASIC language provide a secure, stable Bluetooth environment for any embedded design. Let Laird's innovative BT900 series and decades of expertise in Bluetooth module design speed your product to market. Available in BT900-SA and BT900-SC variants.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird Connectivity

Laird Connectivity simplifies the rapid integration of wireless technologies with market-leading wireless modules and antennas, integrated sensor and gateway platforms, and customer-specific wireless solutions. Our best-in-class support and comprehensive engineering services help reduce risk and improve time-to-market.


FIND OUT MORE

Overview


SMALL. SMART. SIMPLE. Laird's BT900 modules reduce the engineering burden and design risk of integrating Bluetooth and Bluetooth Low Energy into any OEM device. The BT900s tiny form factor, optimized power schemes, and smartBASIC language provide a secure, stable Bluetooth environment for any embedded design. Let Laird's innovative BT900 series and decades of expertise in Bluetooth module design speed your product to market. Available in BT900-SA and BT900-SC variants.


Download the NEW UwTerminalX as well as the two companion applications: MultiDeviceLoader and TermNotify.

Features

  • Bluetooth v4.0 - Dual Mode (Classic Bluetooth and BLE)

  • External or Internal Antennas

  • smartBASIC programming language

  • Full Bluetooth EPL

  • Compact Footprint

  • Programmable TX power 8 dBm to -20 dBm

  • RX sensitivity: -90 dBm

  • Ultra-low power consumption

  • TX: 85 mA peak (at +8dBm)

  • Standby Doze: 2.8 mA (see Power Consumption Note 2)

  • Deep Sleep: 2.7 uA

  • UART, GPIO, ADC, PWM, FREQ output, TIMERS, I2C, and SPI interfaces

  • Fast Time to Market

  • FCC, EU, ISED, and Japan certified; other certs on request

  • No external components required

Applications

Specifications for BT900 BTv4.0 dual Mode smartBASIC

MCU
Interfaces UART
Uncategorized
Antenna External Antenna or Integrate Antenna
BT Class Class 1
Other wireless None
Operation Temperature -40 °C ~ +85 °C
Stack on Board Yes
BLE connection 7
Bluetooth mode Dual mode 4.0
Chipset CSR8811
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products

Suggested alternatives:
[BL652-SA] BL652 Bluetooth 5 with NFC (Internal antenna)
BL652 Bluetooth 5 with NFC
[BT800-ST-01-T/R] BT800-02 Dual Mode Bluetooth 4.2 HCI module (External Antenna)
BT800-02 Dual Mode Bluetooth 4.2 HCI module

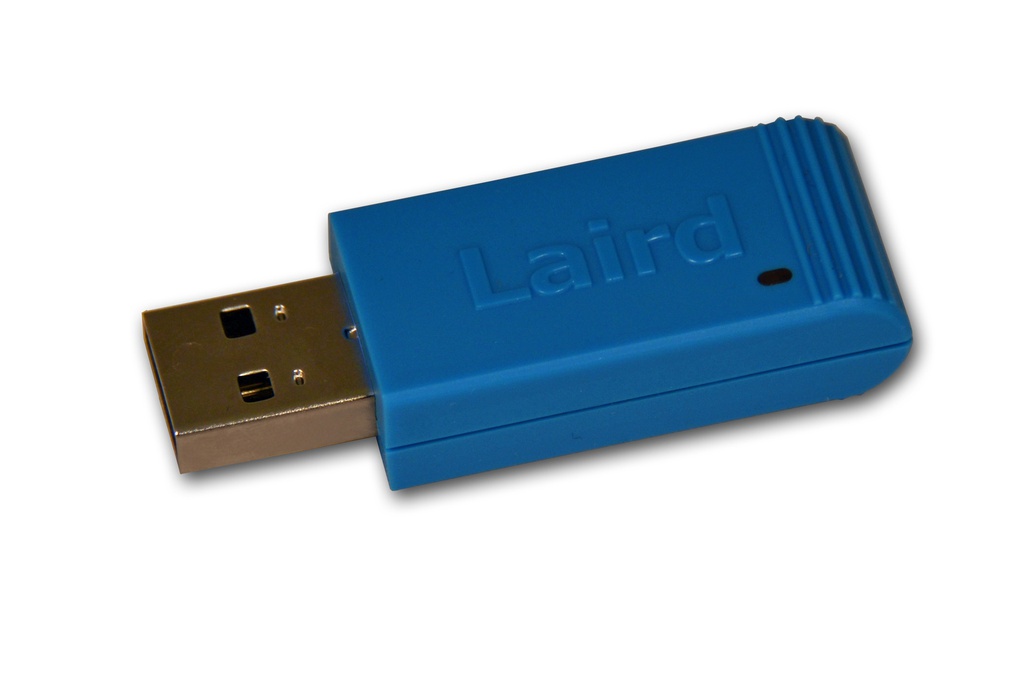

[BT900-US] BT900 Dual Mode 4.0 USB dongle
