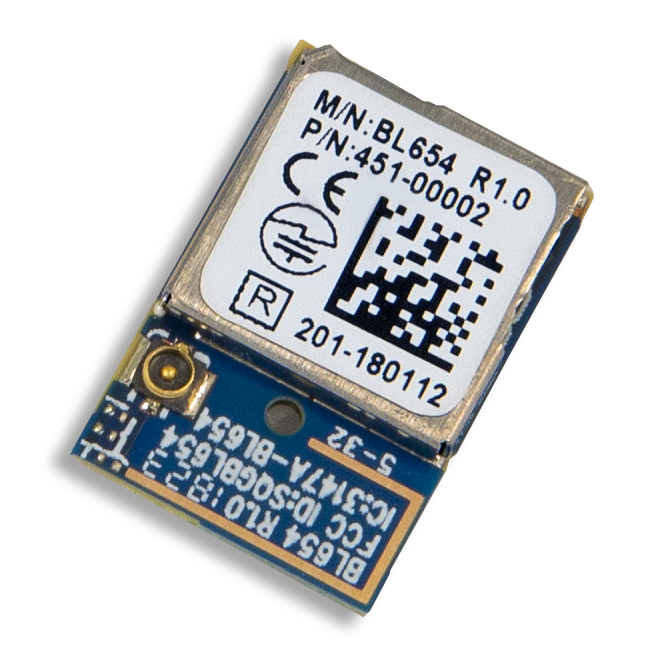

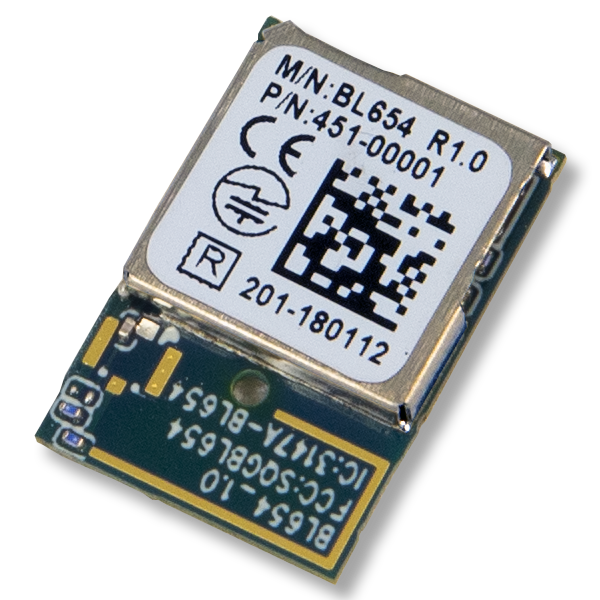

Laird BL654 Bluetooth Module with NFC
The BL654 series brings out all nRF52840 hardware features and capabilities including USB access, up to 5.5V supply considerations, and 802.15.4 (Thread) implementation.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

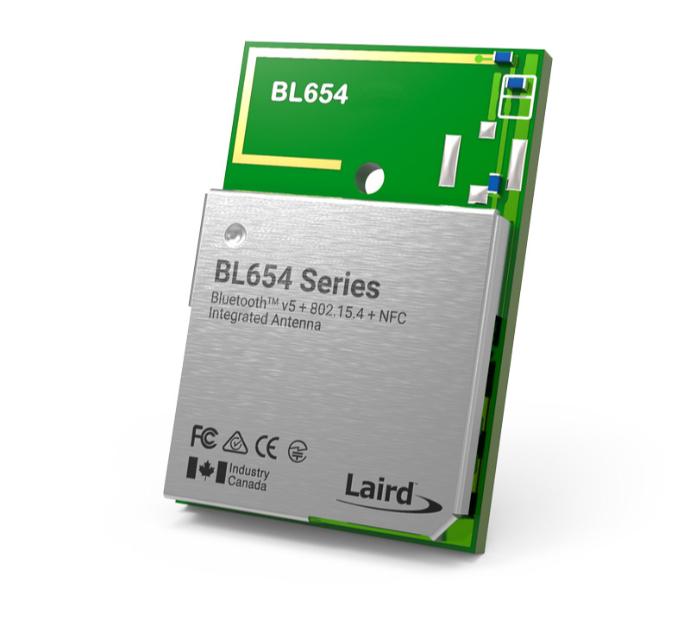

BL654 Bluetooth 5.1 module
A complete multi-protocol embedded wireless offering with exceptional processing capability, all at a micropower budget. Powered by Nordic’s nRF52840 silicon, the small form factor BL654 modules, DVKs and USB Dongle provide for a secure, robust BLE and Cortex -M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for the Nordic SDK, a simple, intuitive AT Command Set, as well as Laird’s own smartBASIC environment.
Features
Bluetooth 5.1 & Thread (802.15.4) - Bluetooth Low Energy (BLE) plus NFC, featuring Nordic nRF52840
Widest Range of Configurable Interfaces - UART, I2C, SPI, ADC, GPIO, PWM, FREQ, USB, and NFC
2Mbps & LE Long Range - Support for 2Mbps, 1Mbps, & 125kps coded
Hostless Operation with Powerful Core - Internal MCU reduces BOM and Cortex-M4F (1Mbit Flash, 256k RAM)
Application Design Choice - Leverage Laird’s smartBASIC, simple AT Command Set or utilize Nordic SDK directly
USB Dongle Option - Packaged USB Adapter – bring full Bluetooth 5.1 connectivity to ANY device with a virtual COM port capability
Applications
Specifications for Laird BL654 Bluetooth Module with NFC
| MCU | |
|---|---|
| Interfaces | UART, I2C, SPI, ADC, PDM, GPIO, USB |
| Uncategorized | |
| Antenna | External Antenna or Integrate Antenna |
| BT Class | Class 1 |
| Standard Compliance | RoHS REACH |
| Dual Mode | No |
| Other wireless | NFC |
| MCU | Cortex M4F |
| Operation Temperature | -40 °C ~ +85 °C |
| Stack on Board | Yes |
| Certification | FCC CE IC RCM SIG |
| Transmit Power | 8dBm |
