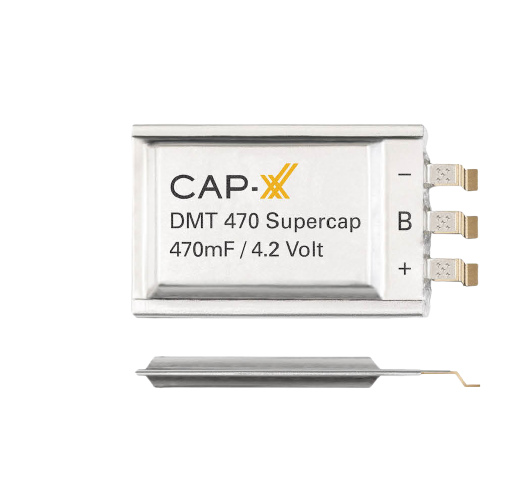

DMT470mF 4.2V 470mF ESR 130mΩ

  • Cells
  • Rating Voltage
  • ESR
  • Leakage Current
  • RMS current
  • Peak current
  • Operation Temperature range
  • Production
  • Super cap capacity
  • Dimension

SG$ 7.94 SG$ 7.94 7.941000000000001 SGD

US$ 6.17

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

CAP-XX


CAP-XX is a world leader in the design and manufacture of thin, flat supercapacitors and energy management systems used in portable and small-scale electronic devices.


The unique feature of CAP-XX supercapacitors is their very high power density and high energy storage capacity in a space-efficient prismatic package. These attributes are essential in power-hungry consumer and industrial electronics, and deliver similar benefits in automotive and other transportation applications.


FIND OUT MORE

Overview


DMT which is a very long life part that can operate up to 85°C and up to 4.2V – ideal if paired with a Li-ion battery, or a 3.6V Lithium Thionyl Chloride battery in a set and forget long life, 10 – 15 year application such as a smart meter, building or industrial sensor;

Features

  • DMF up to 4.2V

  • Very Low ESR

  • Down to 130mΩ

  • Dull Cell

  • Operation temperature range: -40 to +85°C

  • Prismatic and thinest super capacitor in the world

Applications

Specifications for DMT470mF 4.2V 470mF ESR 130mΩ

Super cap
Cells Dual Cell
Rating Voltage 4.2V
ESR 130mΩ
Leakage Current 6uA
RMS current 4.8
Peak current 10A
Uncategorized
Operation Temperature range -40°C to +85°C
Production Murata
Super cap capacity 470mF
Dimension 21 x 14 x 3.5mm
