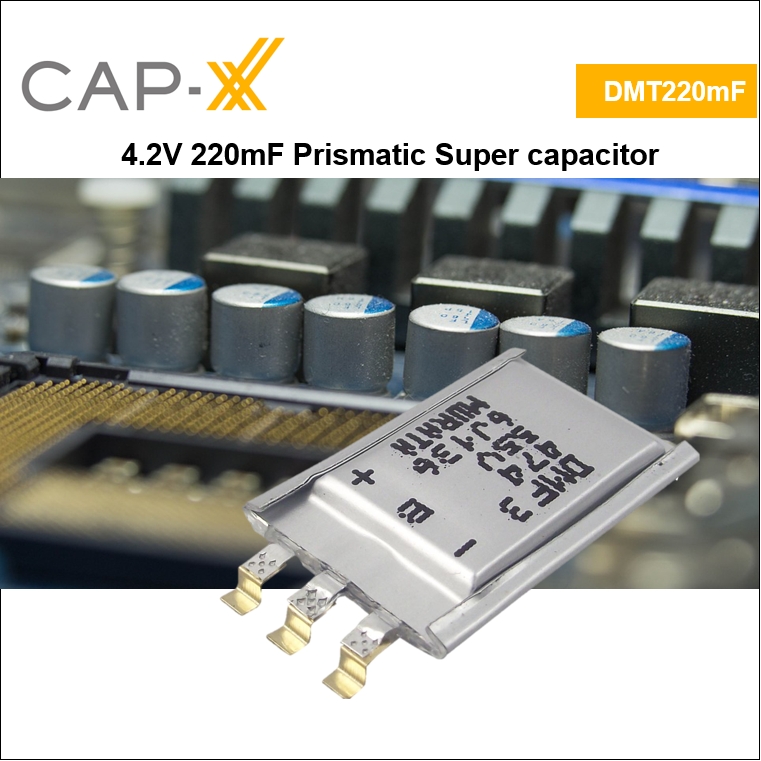

DMT220mF 4.2V 220mF ESR 300mΩ

  • Cells
  • Rating Voltage
  • ESR
  • Leakage Current
  • RMS current
  • Peak current
  • Operation Temperature range
  • Production
  • Super cap capacity
  • Dimension

SG$ 8.36 SG$ 8.36 8.364700000000001 SGD

US$ 6.17

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


CAP-XX is a world leader in the design and manufacture of thin, flat supercapacitors and energy management systems used in portable and small-scale electronic devices.

The unique feature of CAP-XX supercapacitors is their very high power density and high energy storage capacity in a space-efficient prismatic package. These attributes are essential in power-hungry consumer and industrial electronics, and deliver similar benefits in automotive and other transportation applications.



DMT which is a very long life part that can operate up to 85°C and up to 4.2V – ideal if paired with a Li-ion battery, or a 3.6V Lithium Thionyl Chloride battery in a set and forget long life, 10 – 15 year application such as a smart meter, building or industrial sensor;


  • DMF up to 4.2V

  • Very Low ESR

  • Down to 300mΩ

  • Dull Cell

  • Operation temperature range: -40 to 85°C

  • Prismatic and thinest super capacitor in the world


Specifications for DMT220mF 4.2V 220mF ESR 300mΩ

Super cap
Cells Single Cell
Rating Voltage 4.2V
ESR 300mΩ
Leakage Current 5uA
RMS current 3.2A
Peak current 10A
Operation Temperature range -40°C to +85°C
Production Murata
Super cap capacity 220mF
Dimension 21 x 14 x 2.2mm
