LoRaWAN Air Quality Sensor

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Sensor Measurement Range
  • Battery Capacity

SG$ 58.61 SG$ 58.61 58.613200000000006 SGD

US$ 45.00

This combination does not exist.

Add to Cart

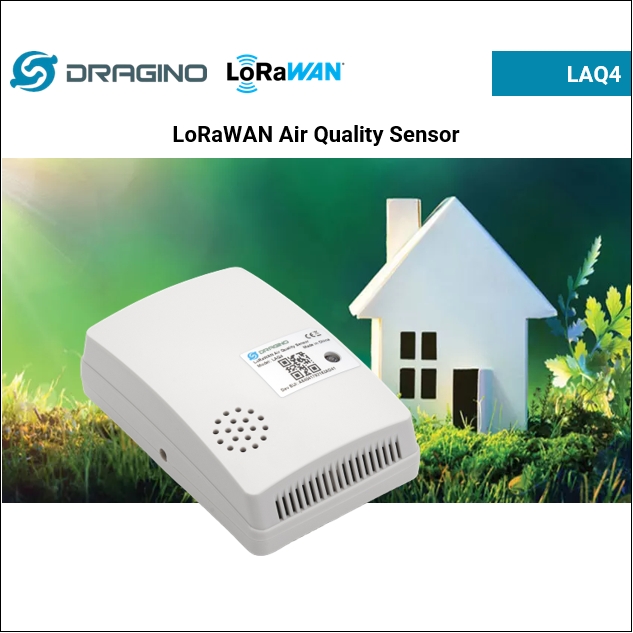

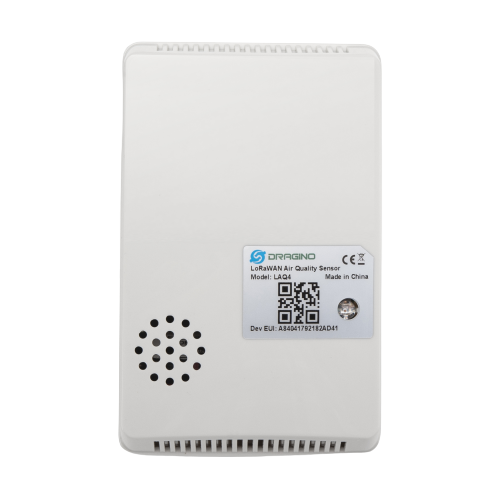

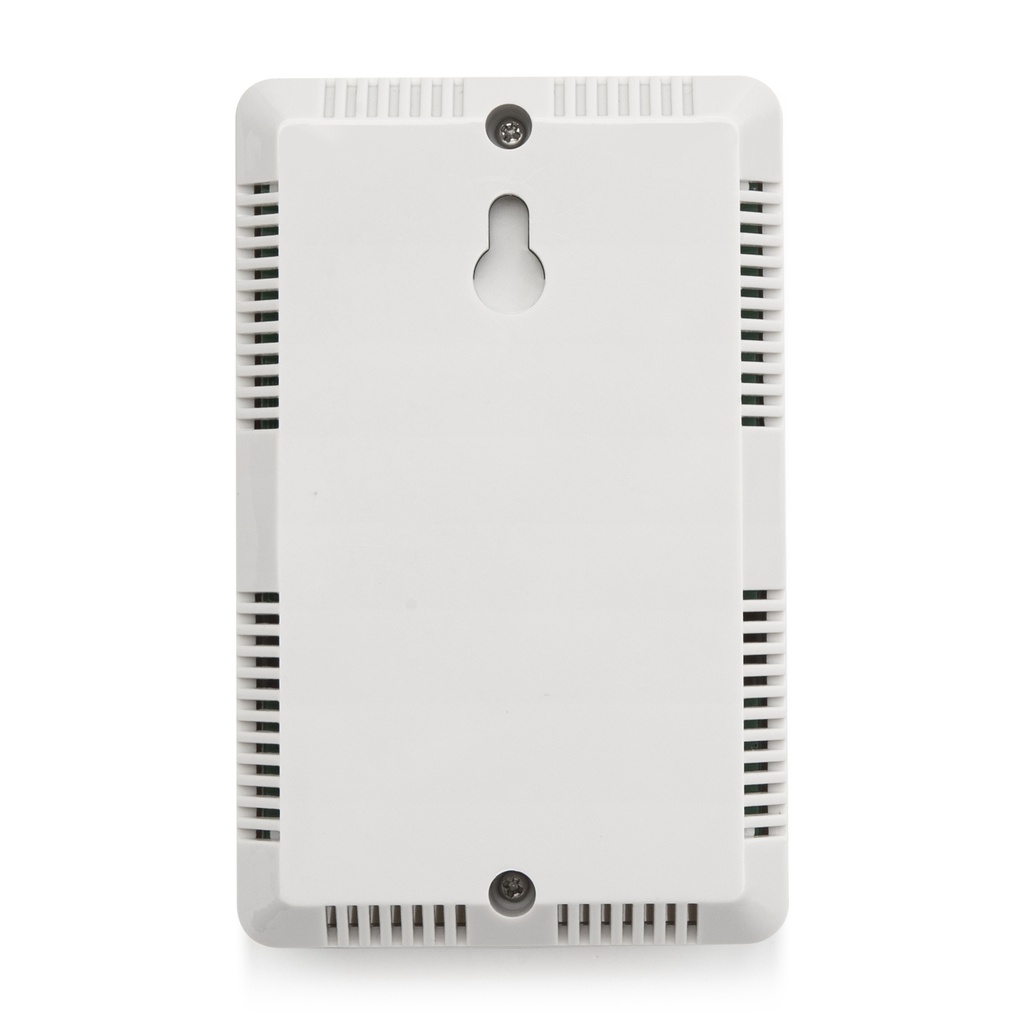

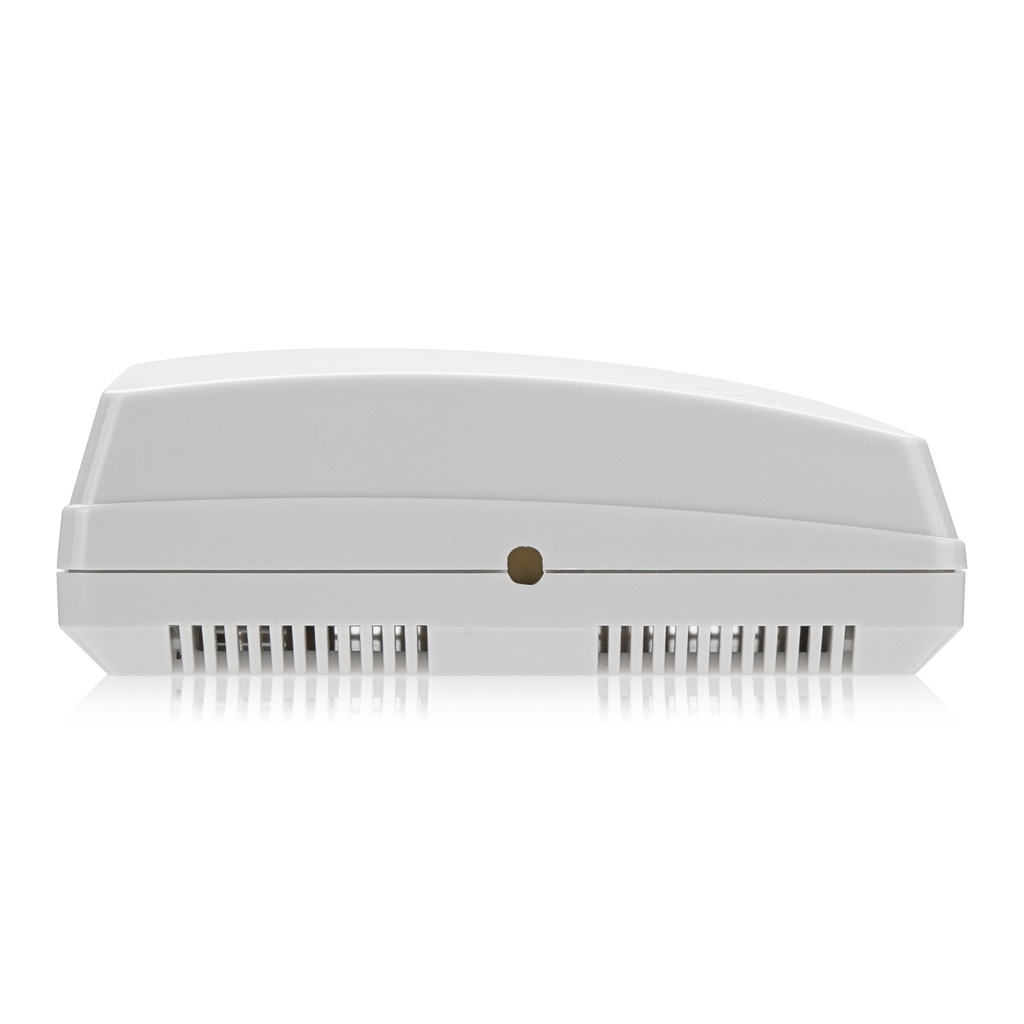

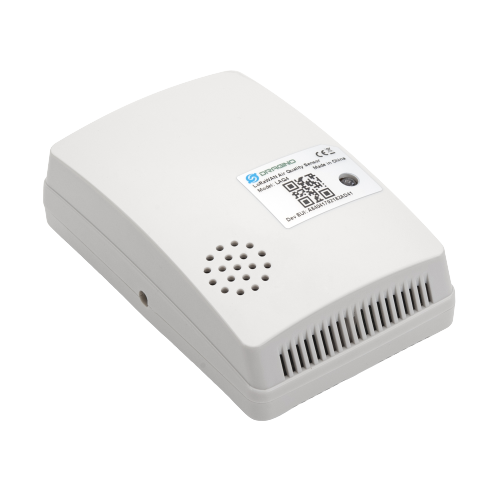

The Dragino LAQ4 is a LoRaWAN Air Quality Sensor for Internet of Things solution. It is designed to measure the surrounding environment parameters include: TVOC(Total Volatile Organic Compound), eCO2(equivalent CO2), temperature and relative air humidity, and then upload to IoT server via LoRaWAN wireless protocol.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The Dragino LAQ4 is a LoRaWAN Air Quality Sensor for Internet of Things solution. It is designed to measure the surrounding environment parameters include: TVOC(Total Volatile Organic Compound), eCO2(equivalent CO2), temperature and relative air humidity, and then upload to IoT server via LoRaWAN wireless protocol.

IAQ (Indoor Air Quality) is very important factor for indoor activity and human life. VOC(Volatile Organic Compound) are emitted as gases from certain solids or liquids and they are the main source for poor indoor air quality. LAQ4 provides the trend for IAQ measurement and, like all other TVOC sensors, LAQ4 requires calibration for more accuracy measurement on TVOC and eCO2.

LAQ4 supports temperature and humidity alarm feature, user can get alarm for instant notice.

LAQ4 supports Datalog feature, User can retrieve the sensor data from LoRaWAN commands.

Each LAQ4 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after activation.



Features

  • LoRaWAN v1.0.3 Class A

  • Ultra-low power consumption

  • Monitor TVOC/ eCO2/ Temperature and Relative Humidity

  • Temperature & Humidity alarm

  • Bands: CN470/EU433/KR920/US915

  • EU868/AS923/AU915/IN865

  • AT Commands to change parameters

  • Auto adjust timing. Remote retrieve data

  • Uplink on periodically or Interrupt

  • Downlink to change configure

Applications

Specifications for LoRaWAN Air Quality Sensor

LoRaWAN
LoRa transceiver SX1262
Uncategorized
Cable length None
Frequency band AS923
OpenCPU No
Sensor eCO2/Temperature/Humidity/TVOC
Waterproof IP30
Class Class A
Power type ER18505 Li-SOCI2 battery
LoRaWAN version 1.0.3
Sensor Measurement Range 0.1m~12m
Battery Capacity 4000mAh
