LoRaWAN LiDAR ToF Distance Sensor

LoRa transceiver
Cable length
Frequency band
OpenCPU
Sensor
Waterproof
Class
Power type
LoRaWAN version
Sensor Measurement Range
Battery Capacity

SG$ 58.01 SG$ 58.01 58.0118 SGD

US$ 45.00

This combination does not exist.

Add to Cart

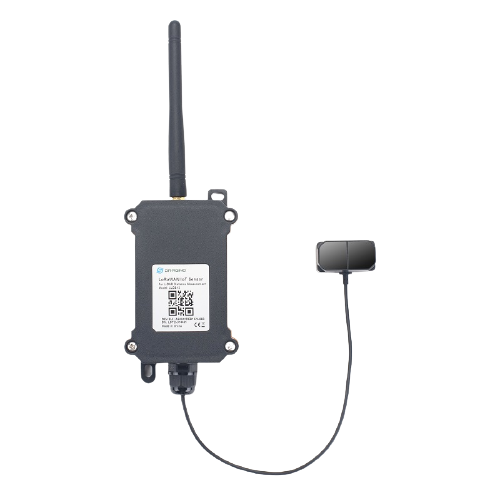

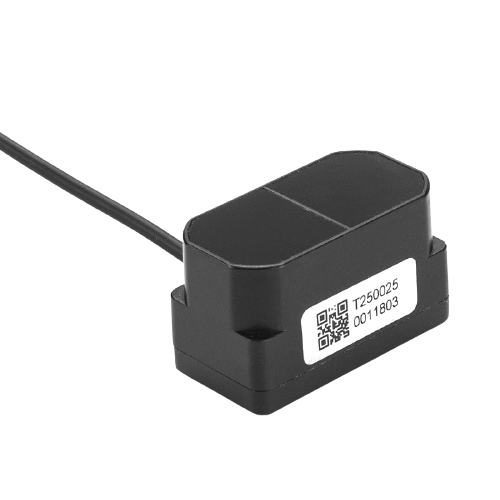

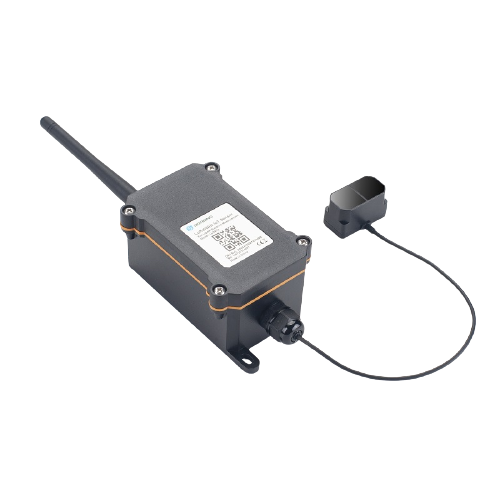

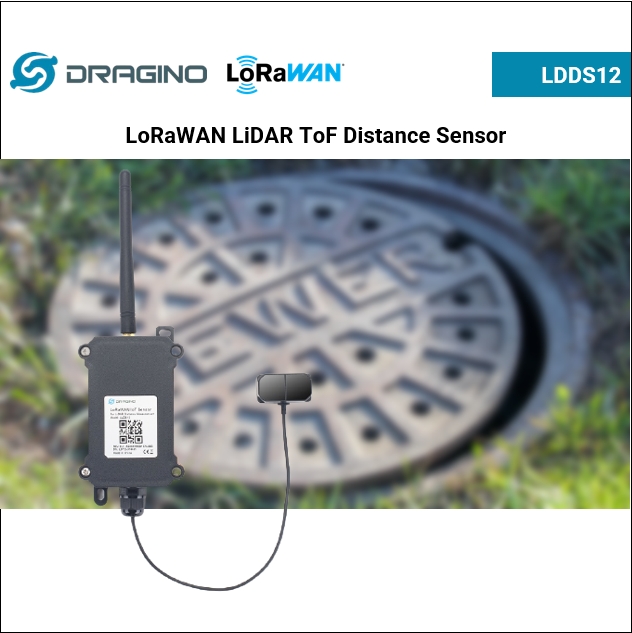

The Dragino LLDS12 is a LoRaWAN LiDAR ToF (Time of Flight) Distance Sensor for Internet of Things solution. It is capable to measure the distance to an object as close as 10 centimeters (+/- 5cm up to 6m) and as far as 12 meters (+/-1% starting at 6m)!. The LiDAR probe uses laser induction technology for distance measurement.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino

We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.

More Detail

Overview

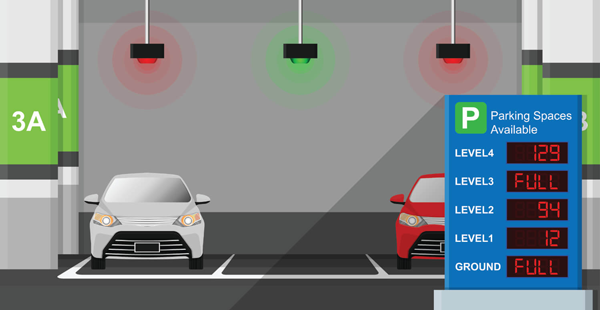

The LLDS12 can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

It detects the distance between the measured object and the sensor, and uploads the value via wireless to LoRaWAN IoT Server.

The LoRa wireless technology used in LLDS12 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

Features

LoRaWAN 1.0.3 Class A
Ultra-low power consumption
Laser technology for distance detection
Operating Range - 0.1m~12m①
Accuracy - ±5cm@(0.1-6m), ±1%@(6m-12m)
Monitor Battery Level
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
AT Commands to change parameters
Uplink on periodically
Downlink to change configure
8500mAh Battery for long term use

Applications

Specifications for LoRaWAN LiDAR ToF Distance Sensor

LoRaWAN
LoRa transceiver	SX1262
Uncategorized
Cable length	0.25m
Frequency band	AS923
OpenCPU	No
Sensor	LiDAR ToF
Waterproof	IP67
Class	Class A
Power type	Built-in Li-SOCL2 battery
LoRaWAN version	1.0.3
Sensor Measurement Range	0.1m~12m
Battery Capacity	8500mAh
