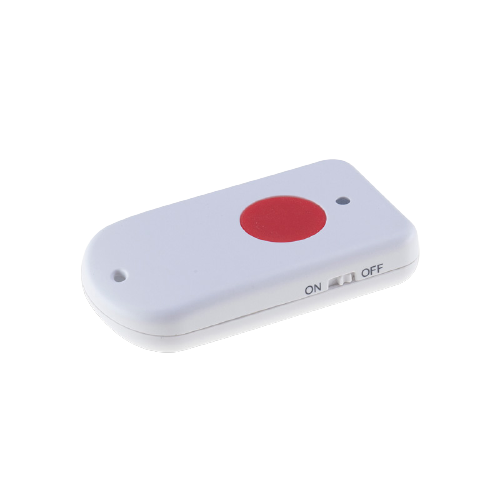

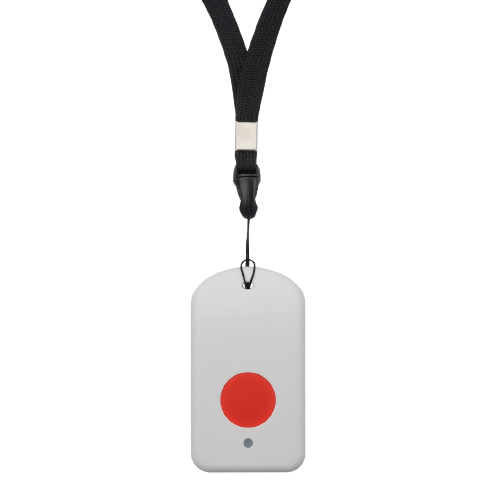

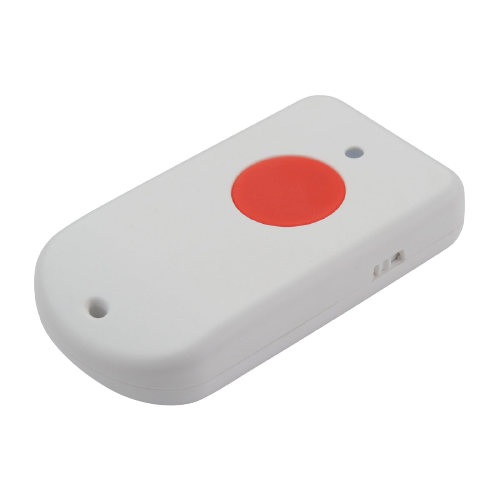

LoRaWAN GPS Tracker with 9-axis accelerometer-LGT92

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Battery Capacity

SG$ 58.07 SG$ 58.07 58.0726 SGD

US$ 45.00

This combination does not exist.

Add to Cart

The Dragino LT series I/O Modules are Long Range LoRa I/O Controller. It contains different I/O Interfaces such as: analog current Input, analog voltage input, relay output, digital input and digital output etc. The LT I/O Modules are designed to simplify the installation of I/O monitoring.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

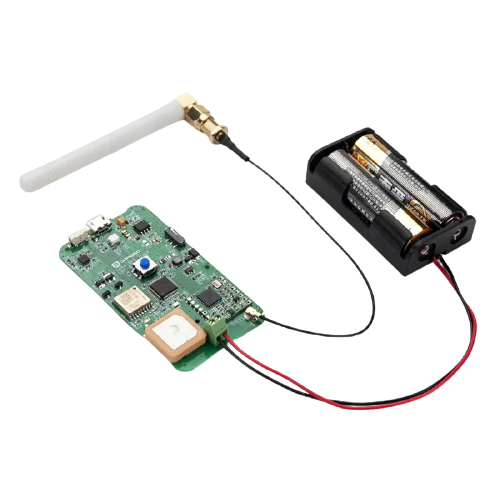

The Dragino LoRaWAN GPS Tracker LGT-92 is an open source GPS tracker base on Ultra Low Power STM32L072 MCU and SX1276/1278 LoRa Module.

LGT-92 includes a low power GPS module L76-L and 9-axis accelerometer for motion and attitude detection. The power for both of the GPS module and accelerometer can be controlled by MCU to achieve the best energy profile for different applications.

The LoRa wireless technology used in LGT-92 allows the user to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.It targets professional tracking service.

Features

  • LoRaWAN 1.0.3 compliant

  • Regular/ Real-time GPS tracking

  • Built-in 9 axis accelerometer

  • Motion sensing capability

  • Power Monitoring

  • Charging clip with USB port  (for LGT-92-LI)

  • 1000mAh Li-on Battery power (for LGT-92-LI)

  • 2 x AA battery holder (for model LGT-92-AA)

  • Tri-color LED, Alarm button

  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915

  • AT Commands to change parameters

Applications

Specifications for LoRaWAN GPS Tracker with 9-axis accelerometer-LGT92

LoRaWAN
LoRa transceiver SX1276
Uncategorized
Power type AA Battery or Li-ion Battery
Cable length None
Frequency band AS923
OpenCPU No
Sensor GPS
Waterproof IP30
Class Class A
LoRaWAN version 1.0.3
Battery Capacity 1000mAh Li-ion
