PD Module, 30W, IEEE802.3at compliant, 12V/24V

  • Role
  • Compliance
  • Output Voltage
  • Temperature Range
  • Power module package
  • Build in Bridge
  • Power isolution
  • Protection

SG$ 25.42 SG$ 25.42 25.4174 SGD

US$ 20.00

This combination does not exist.

Add to Cart

PD Module, 30W, IEEE802.3at compliant,12V/24V, DIL

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

A Section Subtitle

Ag5100 is compatible with both the IEEE 802.3af and 802.3at standards for signature recognition and class programming. The module works with both types of Power Sourcing Equipment (PSE) units - mid-span and end-span injectors. The high-efficiency DC/DC converter operates over a wide input voltage range to provide a regulated low ripple, low noise output. The DC/DC converter also has built-in overload, thermal and short-circuit output protection.

The output voltage is programmable and provides values between 11V and 27V.

The Ag5100 also includes a 1500V isolation required for IEEE802.3 safety specification, and to help prevent earth loops.

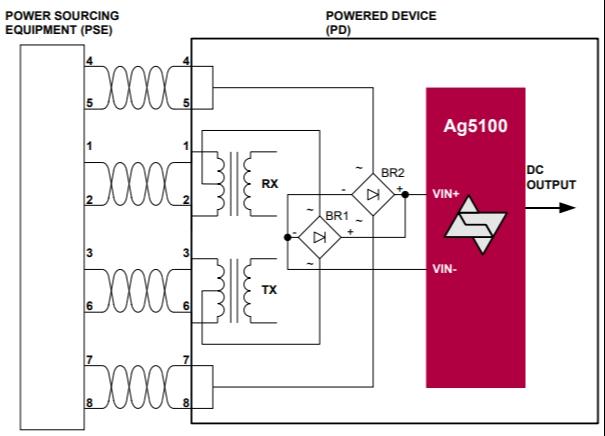

This module is designed for simple integration, requiring the addition of just a few low cost components; two diode bridges and electrolytic capacitors on the DC output.

Features

  • POE + module compliant with IEEE802.3af & at

  • Up to 30 Watt Output Power

  • 85% efficient DC/DC converter

  • Adjustable output voltage

  • 1500V pk isolation (input to output)

  • Input voltage range 37V to 57V

  • Minimal low-cost external components required

  • Overload, thermal, and short-circuit protection

  • Simple integration


Specifications for PD Module, 30W, IEEE802.3at compliant, 12V/24V

Role PD
Compliance IEEE802.3af/at
Output Voltage Adjustable Voltage
Temperature Range Normal
Power module package DIL
Build in Bridge No
Power isolution 1500Vdc
Protection Thermal, Overload and short-circuit
