PE4151 High-Linearity MOSFET Quad Mixer with LO amplifier

    SG$ 21.46 SG$ 21.46 21.4567 SGD

    US$ 15.88

    This combination does not exist.

    Add to Cart

    High-Linearity MOSFET Quad Mixer with LO amplifier

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

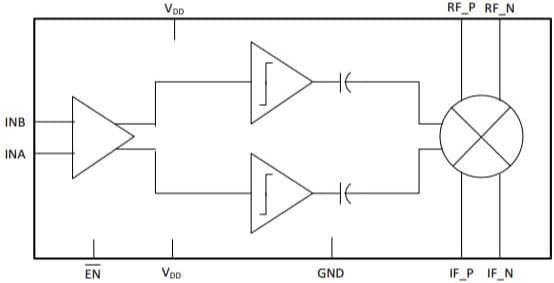

    The PE4151 is an ultra-high linearity quad metal-oxide-semiconductor field-effect transistor (MOSFET) mixer with an integrated local oscillator (LO) amplifier. The LO amplifier allows for LO drive levels of less than 0 dBm to produce third-order intercept point (IIP3) values similar to a quad MOSFET array driven with a 15 dBm LO drive. It is designed for use in upconversion and downconversion applications and is ideal for highly magnetic environments such as medical applications. The PE4151 operates with differential signals at the RF and IF ports while the LO port can be either differential or single-ended.


        Ultra-high linearity quad MOSFET array with integrated LO amplifier
        Ideal for mobile radio and up or down-conversion applications
        Low conversion loss
        High LO isolation
        RoHS-compliant 10-lead MSOP package
        Ideal for highly magnetic environments
        Packaging: 10-lead 3 × 3 × 0.86 mm MSOP
