PE423641 AEC-Q100 SP4T RF switch

SG$ 3.24 SG$ 3.24 3.2442 SGD

US$ 2.42

This combination does not exist.

Add to Cart

AEC-Q100 Certified SP4T, Low IL, Reflective, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

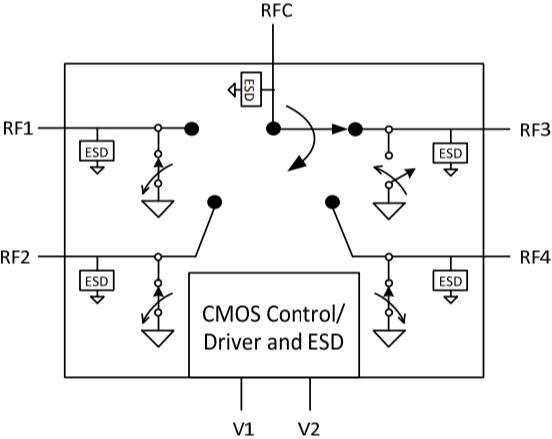

The PE423641 is a HaRP™ technology-enhanced reflective SP4T RF switch. It has received AEC-Q100 Grade 2 certification and meets the quality and performance standards that makes it suitable for use in harsh automotive environments. It is designed to cover a wide range of wireless applications from 50 MHz through 3 GHz such as cellular antenna band switching, automotive infotainment and traffic safety applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

Features

AEC-Q100 Grade 2 certified

Supports operating temperature up to +105°C

HaRP™ technology enhancements provide excellent linearity

Low insertion loss

High isolation

High ESD performance

Integrated decoder for 2-pin control

Packaging: 16-lead 3 × 3 mm QFN
