PE42422 SPDT RF switch

SG$ 1.79 SG$ 1.79 1.7897 SGD

US$ 1.32

This combination does not exist.

Add to Cart

SPDT, Low IL, Reflective, 50Ω RF Switch

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

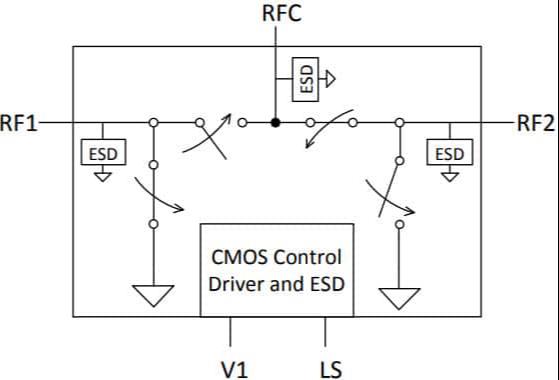

The PE42422 is a HaRP™-enhanced SPDT RF switch designed to cover a broad range of applications from 5 MHz to 6 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no external components.

Features

Symmetric SPDT reflective switch

Low insertion loss

Wide supply range of 2.3–5.5 V

Excellent linearity

High ESD tolerance

Logic Select (LS) pin provides maximum flexibility of control logic

Packaging: 12-lead 2 × 2 mm QFN
