PE42423 SPDT Wi-Fi AC RF switch

    SG$ 2.60 SG$ 2.60 2.6041000000000003 SGD

    US$ 1.93

    This combination does not exist.

    Add to Cart

    SPDT, Absorptive, 50Ω WiFi RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

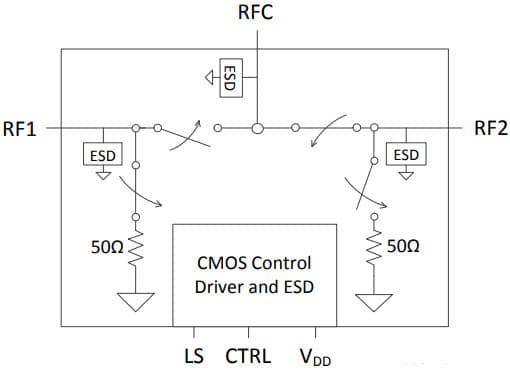

    The PE42423 is a HaRP™ technology-enhanced absorptive 50Ω SPDT RF switch designed for use in high power and high-performance WLAN 802.11 a/b/g/n/ac applications such as carrier and enterprise Wi-Fi products, supporting bandwidths up to 6 GHz.

    This switch features high linearity which remains invariant across the full supply range. PE42423 also features exceptional isolation, high power handling and is offered in a 16-lead 3x3 mm QFN package. In addition, no external blocking capacitors are required if 0V DC is present on the RF ports.


        802.11 a/b/g/n/ac support
        Wide supply range of 2.3V to 5.5V
        +1.8V control logic compatible
        Exceptional isolation
        High linearity across supply range
        High power handling
        Fast switching time of 500 ns
        High ESD tolerance
        Packaging: 16-lead 3 × 3 mm QFN
