PE42424 SPDT Wi-Fi RF switch

    SG$ 1.88 SG$ 1.88 1.8844 SGD

    US$ 1.39

    This combination does not exist.

    Add to Cart

    SPDT, Reflective, 50Ω WiFi RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

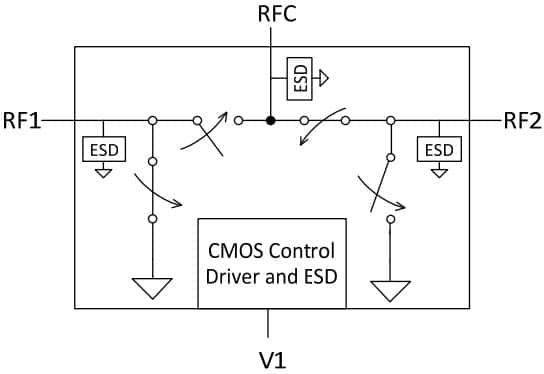

    The PE42424 is a HaRP™ technology-enhanced reflective 50Ω SPDT RF switch designed for use in high power and high-performance WLAN 802.11 a/b/g/n/ac/ax and Wi-Fi 6E applications such as carrier and enterprise Wi-Fi products and ultra-wideband applications supporting bandwidths up to 8.5 GHz.

    This switch features exceptional port-to-port isolation, fast switching speed, and high power handling, all in a compact 1.5 × 1.5 mm package. PE42424 also features high linearity that remains invariant over the full power supply range. In addition, this device has robust ESD and temperature performance and does not require blocking capacitors or any external matching components.


        802.11 a/b/g/n/ac/ax, Wi-Fi 6E and ultra-wideband
        (UWB) support
        Exceptional isolation
        Fast switching
        High power handling
        High linearity across supply range
        1.8V control logic compatible
        105°C operating temperature
        High ESD tolerance
        Packaging: 6-lead 1.5 × 1.5 mm DFN
