Overview

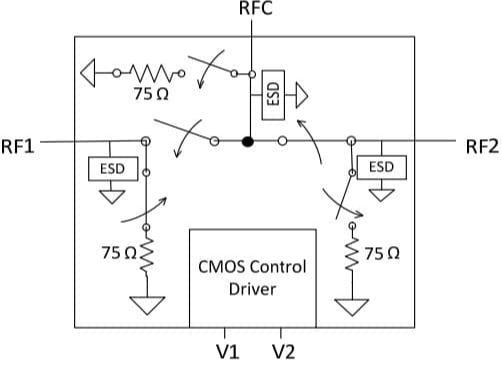

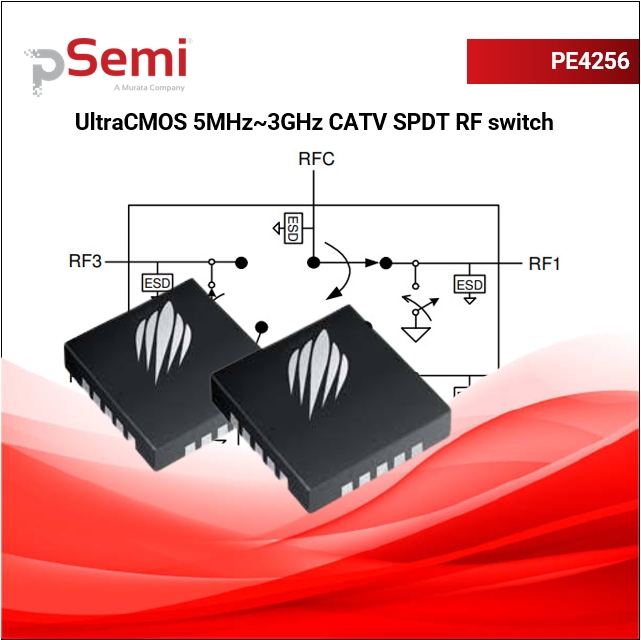

The PE4256 is an UltraCMOS® switch designed for CATV applications, covering a broad frequency range from 5 MHz up to 3 GHz. This single-supply SPDT switch integrates a two-pin CMOS control interface. It also provides low insertion loss with extremely low bias requirements while operating on a single 3V supply. In a typical CATV application, the PE4256 provides for a cost-effective and manufacturable solution when compared to mechanical relays.

Features

75Ω characteristic impedance
Integrated 75Ω terminations
CTB performance of –90 dBc
High isolation 65 dB at 1000 MHz
Low insertion loss: typically 0.5 dB at 5 MHz, 0.9 dB at 1000 MHz
High input IP3: >50 dBm
CMOS two-pin control
Single +3 volt supply operation
Low current consumption: 8 μA
Unique all off terminated mode
Packaging: 4 × 4 mm QFN
