PE426462 Extended Temperature SP6T RF switch

PE426462 Extended Temperature SP6T RF switch

SG$ 8.11 SG$ 8.11 8.1104 SGD

US$ 6.05

This combination does not exist.

Add to Cart

SP6T, -55 to +125 °C, Absorptive, 50Ω RF Switch, w/o ext. Vss

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

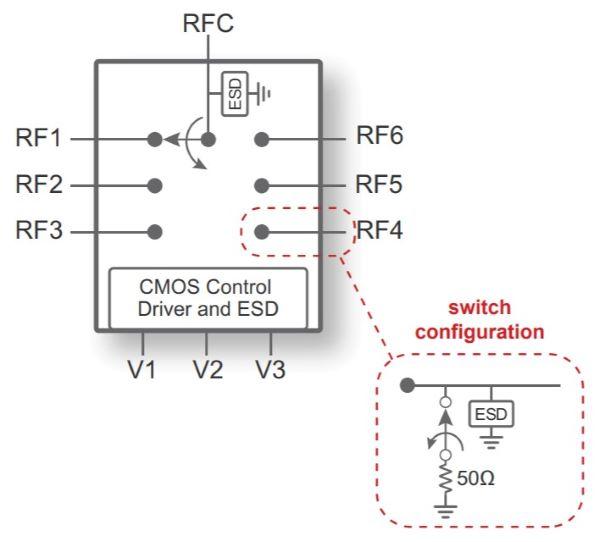

The PE426462 is a HaRP™ technology-enhanced absorptive SP6T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers low insertion loss, fast RF TRISE/TFALL time, and high isolation in the operating temperature range from –55°C to +125°C. It is ideal for harsh industrial applications that require extended support in this temperature range. No blocking capacitors are required if DC voltage is not present on the RF ports.

Features

High isolation: 35 dB @ 6 GHz

Low insertion loss: 1.1 dB @ 6 GHz

RF TRISE/TFALL time of 100 ns

Power handling of 31 dBm CW

Logic select (LS) pin provides maximum control logic flexibility

Terminated all-off state mode

–55°C to +125°C operating temperature support

Packaging: 24-lead 4 × 4 mm QFN
