PE426482 Extended Temperature SP8T RF switch

    SG$ 10.90 SG$ 10.90 10.904 SGD

    US$ 8.07

    This combination does not exist.

    Add to Cart

    SP8T, -55 to +125 °C, Absorptive, 50Ω RF Switch, w/o ext. Vss

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

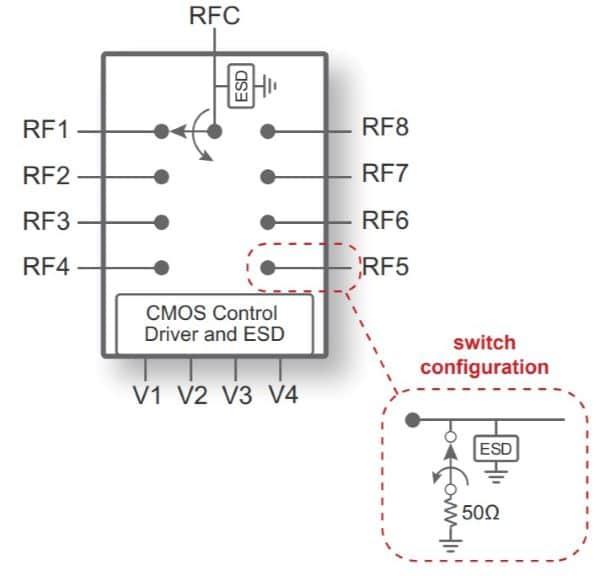

    The PE426482 is a HaRP™ technology-enhanced absorptive SP8T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers low insertion loss, fast RF TRISE/TFALL time, and high isolation in the operating temperature range from –55°C to +125°C. It is ideal for harsh industrial applications that required extended support in this temperature range. No blocking capacitors are required if DC voltage is not present on the RF ports.


        High isolation: 41 dB @ 6 GHz
        Low insertion loss: 1.1 dB @ 6 GHz
        RF TRISE/TFALL time of 100 ns
        Power handling of 31 dBm CW
        Logic select (LS) pin provides maximum control logic flexibility
        Terminated all-off state mode
        –55°C to +125°C operating temperature support
        Packaging: 24-lead 4 × 4 mm QFN
