PE42851High power UltraCMOS SP5T RF switch

    SG$ 27.72 SG$ 27.72 27.7241 SGD

    US$ 20.45

    This combination does not exist.

    Add to Cart

    SP5T, High Power, Fast Switching, Reflective, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.



    The PE42851 is a HaRP™ technology-enhanced SP5T high power RF switch supporting wireless applications up to 1 GHz. It offers maximum power handling of 42.5 dBm continuous wave (CW). It delivers high linearity and excellent harmonics performance. It has both a standard and attenuated RX mode. No blocking capacitors are required if DC voltage is not present on the RF ports.

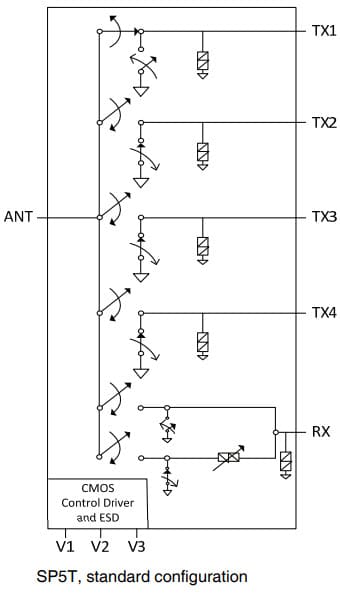

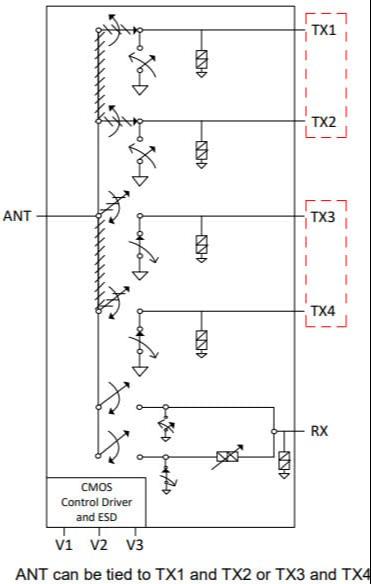

        Dual-mode operation: SP5T or SP3T
        HaRP™-enhanced technology
        Up to 45 dBm instantaneous power in 50 Ω
        Up to 40 dBm instantaneous power < 8:1 VSWR
        36 dB TX to RX isolation
        Low harmonics of 2fo and 3fo = –80 dBc (1.15:1 VSWR)
        ESD performance
        Packaging: 32-lead 5 × 5 mm QFN
