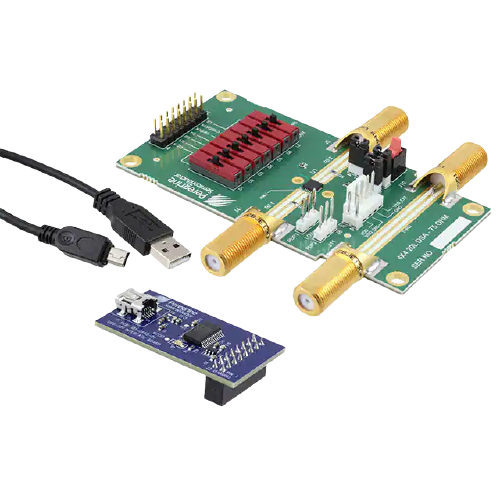

Overview

The PE43205 is a 50Ω, HaRP™ technology-enhanced fast switching 2-bit RF digital step attenuator (DSA) designed for use in 3G/4G wireless infrastructure and other high-performance RF applications.

This DSA is a pin-compatible upgraded version of the PE43204 with a wider frequency and power supply range, and extended operating temperature range.

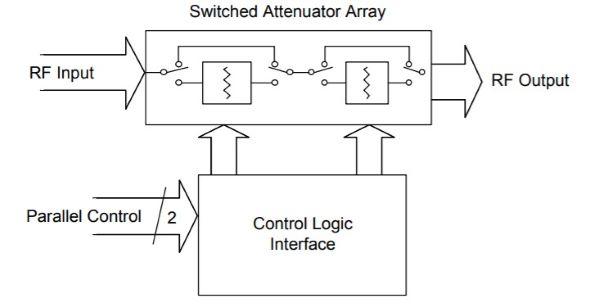

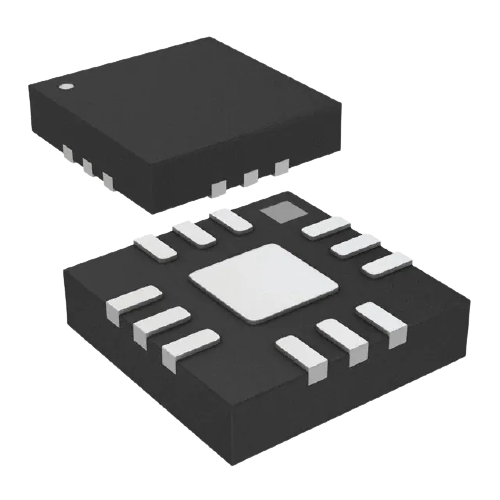

Covering an 18 dB attenuation range in 6 dB and 12 dB steps, it maintains high RF performance and low power consumption from 35 MHz through 6 GHz. PE43205 is offered in a 12-lead 3 × 3 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports

Features

Attenuation: 6 dB/12 dB steps to 18 dB
Fast switching time of 29 ns
Low attenuation error
High linearity
Wide supply range of 2.3V to 5.5V
1.8V control logic-compatible
105°C operating temperature
ESD performance
Parallel control
Package—12-lead 3x3 mm QFN
