PE45361 Power Limiter, 10 MHz–8 GHz

SG$ 15.83 SG$ 15.83 15.8305 SGD

US$ 12.30

This combination does not exist.

Add to Cart

6GHz, 100W Power Limiter

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

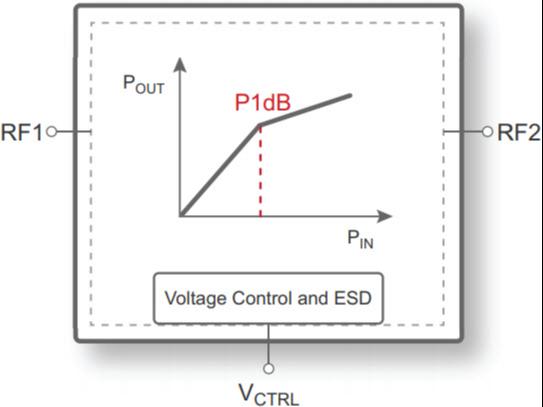

The PE45361 is a HaRP™ technology-enhanced power limiter designed for use in high-performance power limiting applications in test and measurement (T&M) equipment and wireless-infrastructure transceivers and antennas. Unlike traditional PIN-diode solutions, the PE45361 achieves an adjustable input 1 dB compression point or limiting threshold via a low current control voltage (VCTRL), eliminating the need for external bias components, such as DC blocking capacitors, RF choke inductors and bias resistors

Features

Monolithic drop-in solution with no external bias components

Adjustable low power limiting threshold from +7 dBm to +13 dBm

High maximum power handling of 50 dBm, 100W

Positive threshold control of +0V to +0.3V

Fast response time of 0.6 ns

Packaging: 12-lead 3 × 3 × 0.5 mm QFN
