PE45450 Power Limiter, 9 kHz–6 GHz

    SG$ 11.58 SG$ 11.58 11.5768 SGD

    US$ 8.58

    This combination does not exist.

    Add to Cart

    6 GHz 50W Power Limiter

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

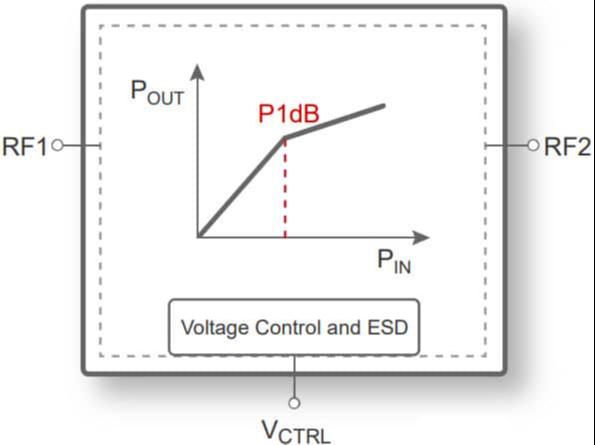

    The PE45450 is a HaRP™ technology-enhanced power limiter designed for use in high-performance power limiting applications in test-and-measurement (T&M) equipment, radar, military electronic countermeasure receivers, and wireless infrastructure transceivers and antennas. Unlike traditional PIN diode solutions, the PE45450 achieves an adjustable input 1 dB compression point or limiting threshold via a low current control voltage (VCTRL), eliminating the need for external components, such as DC blocking capacitors, RF choke inductors and bias resistors. It delivers low insertion loss and high linearity under non-limiting input power levels and extremely fast response and recovery time in a limiting event. It also offers a superior ESD rating and ESD protection for subsequent circuitry.


        Monolithic drop-in solution with no external bias components reducing design complexity
        Adjustable power limiting threshold from +25 dBm to +35 dBm
        Max power handling
        Superior ESD rating and ESD protection
        Unbiased power limiting operation
        Fast response and recovery time of 1 ns
        Dual-mode operation
        Packaging: 12-lead 3 × 3 mm QFN
