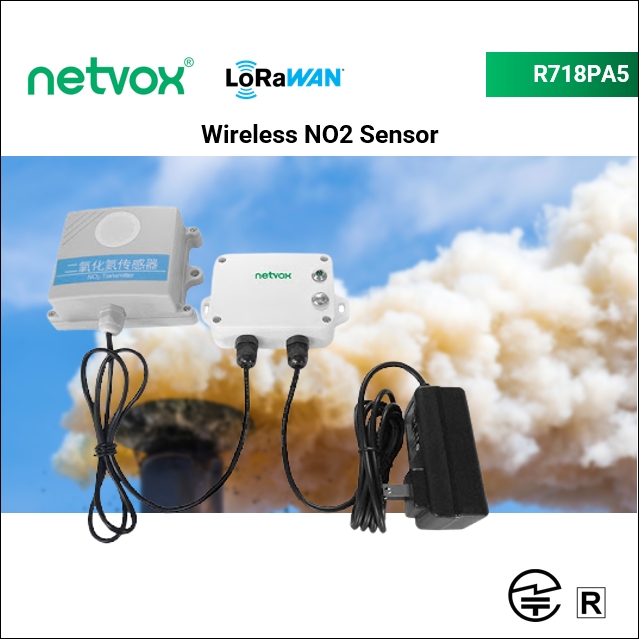

R718PA5 Wireless NO2 Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 748.63 SG$ 748.63 748.6333000000001 SGD

US$ 573.00

This combination does not exist.

Add to Cart

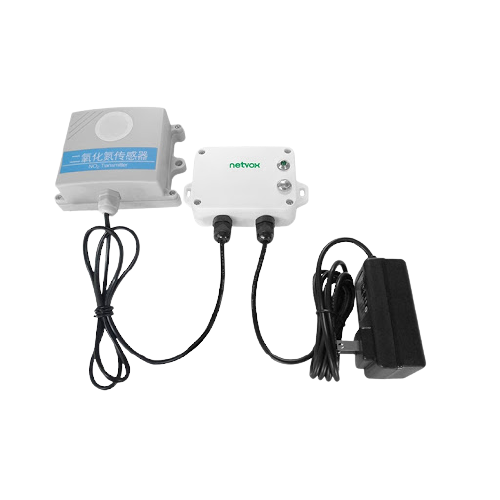

The R718PA5 is a wireless communication device that detects NO2 concentration in ambient air. The main unit communicates with the NO2 sensor via the RS485 connection interface. The collected data will be shown in the other devices such as a third party platform through wireless network compatible with LoRaWAN protocol.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

The R718PA5 is a LoRaWAN wireless communication device that detects NO2 concentration in ambient air. The main unit communicates with the NO2 sensor via the RS485 connection interface. The collected data will be shown in the other devices such as a third-party platform through a wireless network compatible with LoRaWAN protocol.

    Features

    • Wireless Range of 10 Km
    • LoRaWAN™ Class A Compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life*2:
      ⁻ 5 Years

       (Conditions: Ambient Temperature 25 °C, 20 Triggers/Day, Txpower = 20dBm, LoRa Spreading Factor SF = 10)

    • Over-The-Air Updates

    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)

    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

              Specifications for R718PA5 Wireless NO2 Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type DC12V/1A
              Sleep Power consumption 60mA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 0- 20ppm
              TX Power 16dBm
              Chipset SX1276
              Sensors NO2 Sensor
