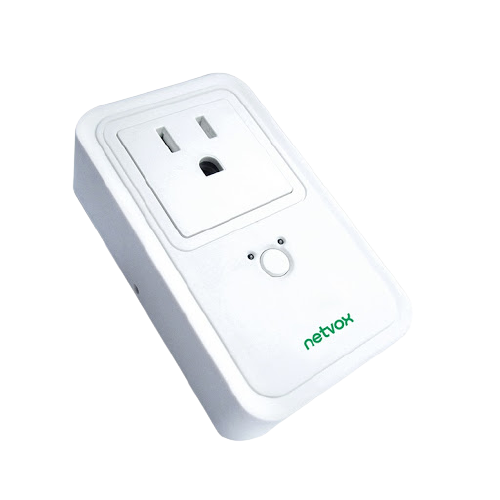

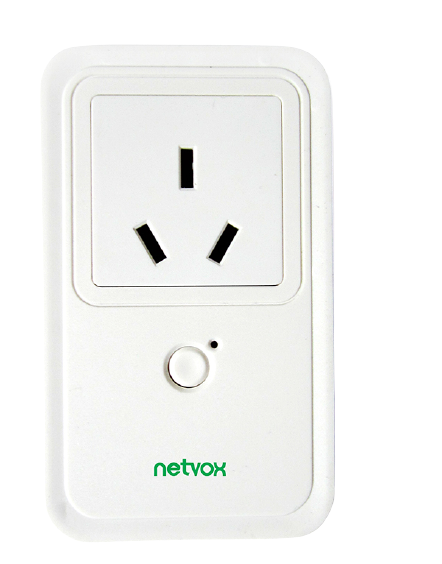

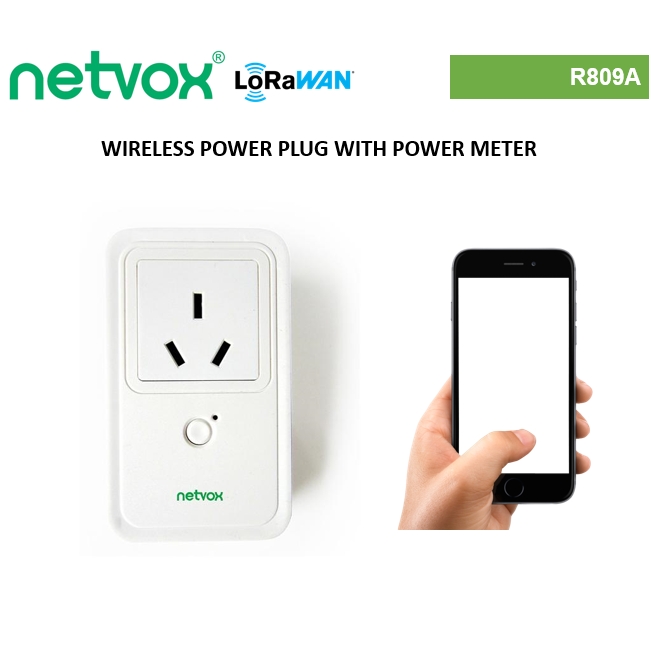

R809A Wireless Plug-and-Play Power Outlet with Consumption Monitoring
R809A is a Wireless Plug-and-Play Power Outlet with Consumption Monitoring for indoor use. It can remotely control the output switch and detect the output power. It integrates the LoRa/FSK modulation communication wireless module SX1276 which can realize wireless remote control. R809A has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless switch control.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The R809A is a wireless power plug converter for indoor use. It can remotely control the output switch and detect the output power. It integrates the LoRa/FSK modulation communication wireless module SX1276, which can realize wireless remote control. R809A has a 10A/230VAC output load capability and is primarily used to measure electrical power consumption and wireless switch control.
The wireless communication is compatible with LoRaWAN™ Protocol (ClassC).
Features
- Wireless Range of 10km
- LoRaWAN Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved Interference Immunity
- Improved Power Management for Longer Battery Life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
- Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
- Over-The-Air Updates (Future)
- Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
- And Set Alerts Via SMS Text And Email (Optional)
- Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
- R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
Specifications for R809A Wireless Plug-and-Play Power Outlet with Consumption Monitoring
| LoRaWAN | |
|---|---|
| Configuration Interface | UART |
| Power Outage Detection | No |
| Uncategorized | |
| Power Adapter | EU or UK or US or AU |
| Frequency band | AS923 or AU915 or EU868 or US915 |
| Waterproof | IP30 |
| Class | Class C |
| Power type | 220V |
| Sleep Power consumption | 15mA |
| Rx Sensitivity | -136dBm |
| with Power meter | Yes |
| Transmit Power | 19dBm±1dBm |
| Chipset | SX1276 |
