RA0730Y Wireless Wind speed sensor/Wind direction sensor/Temperature/Humidity Sensor

Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Sensor Measurement Range
TX Power
Chipset
Certification
Sensors

SG$ 691.67 SG$ 691.67 691.6704000000001 SGD

US$ 513.00

This combination does not exist.

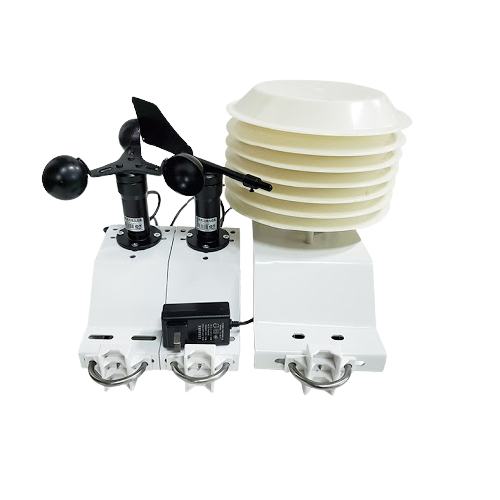

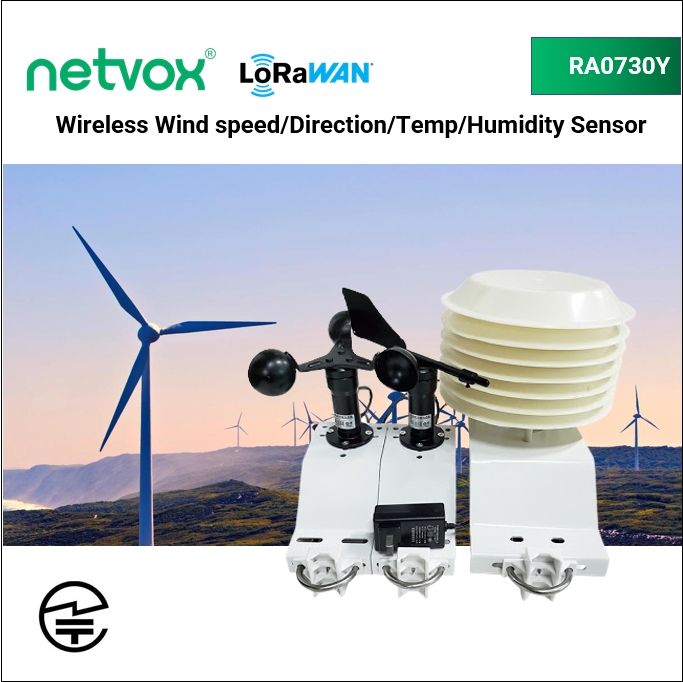

RA0730Y is equipped with wind speed sensor, wind direction sensor, and temperature and humidity sensor. It can detect and send the data of the wind speed, wind direction, temperature and humidity of the environment.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

RA0730Y is equipped with a wind speed sensor, wind direction sensor, and temperature and humidity sensor. It can detect and send the data of the wind speed, wind direction, temperature and humidity of the environment.

Feature

• Adopt SX1276 wireless communication module
• Wind speed detection
• Wind direction detection
• Temperature and humidity detection
• Compatible with LoRaWANTM Class A
• Frequency hopping spread spectrum technology
• Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
• Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

Specifications for RA0730Y Wireless Wind speed sensor/Wind direction sensor/Temperature/Humidity Sensor

Frequency band	AS923 or AU915 or EU868 or US915
Waterproof	IP67
Class	Class A
Power type	DC12V/1A
Sleep Power consumption	30mA
Rx Sensitivity	-136dBm
Sensor Measurement Range	0-30 m/s
TX Power	16dBm
Chipset	SX1276
Certification	TELEC
Sensors	Wind speed/Direction/Temperature/humidity
