  2. RA07W Wireless Water Leak Detection and Location Sensor
SGD Pricelist

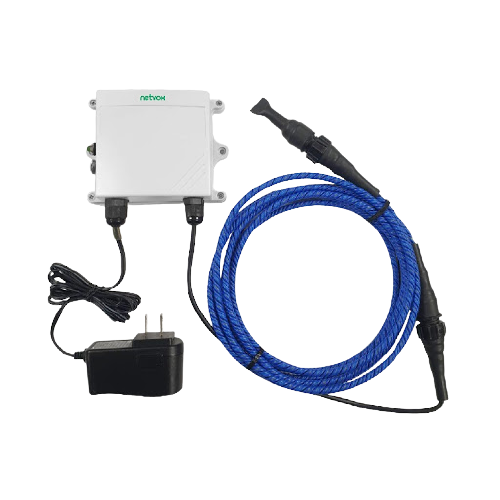

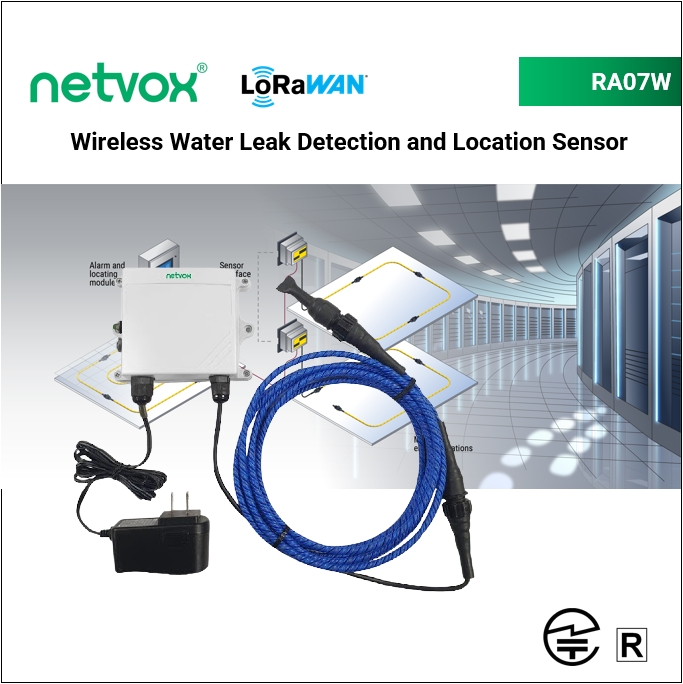

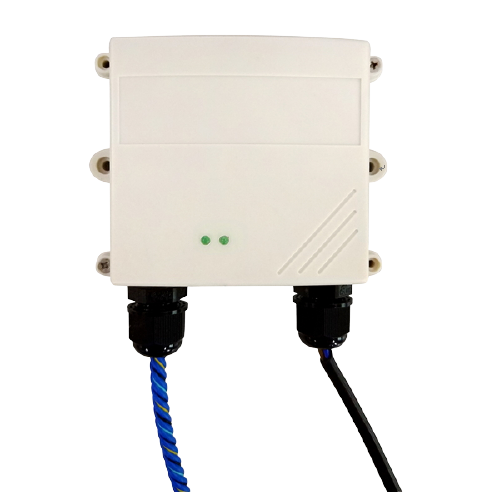

RA07W Wireless Water Leak Detection and Location Sensor

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 444.02 SG$ 444.02 444.0249 SGD

US$ 345.00

This combination does not exist.

Add to Cart

R718VA is a device to detect the status of toilet water, hand sanitizer level, presence or absence of tissue. This device is connected with a non-contact capacitive sensor can be mounted to the exterior of the container, without direct contact with the object to be detected, which may detect the current water level of positions mounted, or the presence or absence of liquid soap or toilet paper; the detected data is transmitted to other devices through the wireless network. It uses the SX1276 wireless communication module.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R718VB can detect the toilet water level, hand sanitizer level, presence or absence of toilet paper, it may also be applied to non-metallic pipes (pipe diameter D≥11MM) liquid level detector. This device is connected with a non-contact capacitive sensor which can be mounted to the exterior of the container, without direct contact with the object to be detected, which may detect the current position of liquid level, or the presence or absence of liquid soap, toilet paper; the detected data is transmitted to other devices through the wireless network. It uses the SX1276 wireless communication module .




                  Features

                  Adopt SX1276 wireless communication module
                  2 ER14505 battery AA SIZE (3.6V / section) parallel power supply
                  Non-contact capacitive sensor
                  Equipment body protection grade IP65/IP67 (optional), and the sensor probe part protection grade is IP67
                  The base is equipped with a magnet that can be attached to the iron object.
                  Compatible with LoRaWANTM  Class A
                  Frequency hopping spread spectrum technology
                  Configuration parameters can be configured through third-party software platforms
                  Data can be read and alerts can be set via SMS text and email (optional)
                  Applicable to third-party platforms: Actility / ThingPark / TTN / MyDevices / Cayenne
                  Low power consumption and long battery life
                  Note*: Battery life is determined by the sensor reporting frequency and other variables . Please refer to http://www.netvox.com.tw/electric/electric_calc.html
                  On this website, users can find various types of battery life time in different configurations.

                            Specifications for RA07W Wireless Water Leak Detection and Location Sensor

                            Frequency band AS923 or AU915 or EU868 or US915
                            Waterproof IP65
                            Class Class A
                            Power type DC12V/1A
                            Sleep Power consumption NA
                            Rx Sensitivity -136dBm
                            Sensor Measurement Range 100m
                            TX Power 16dBm
                            Chipset SX1276
                            Sensors Water leak with Rope Sensor
