RAK3172 STM LoRaWAN SiP

  • Frequency band

SG$ 20.34 SG$ 20.34 20.3355 SGD

US$ 15.00

This combination does not exist.

Add to Cart

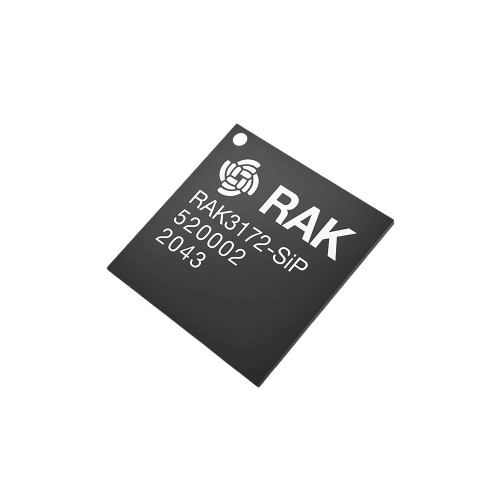

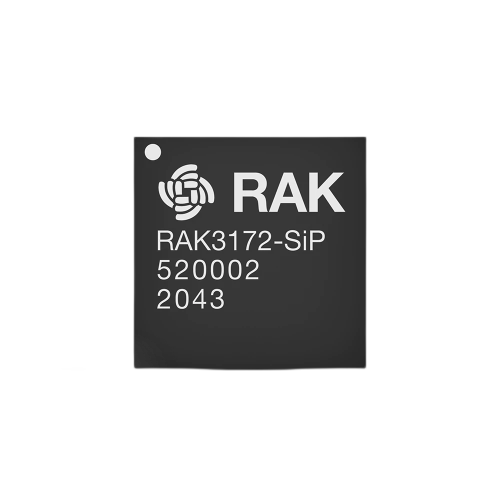

RAK3172-SiP is a low-power long range transceiver system in a package (SiP) that is based on STM32WLE5CC chip. It provides an easy to use, small size, low-power solution for long range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

RAK3172-SiP is a low-power long range transceiver system in a package (SiP) that is based on STM32WLE5CC chip. It provides an easy to use, small size, low-power solution for long range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point-to-Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.
You can configure the mode and operation of the module using AT commands via a UART interface. RAK3172 also offers low power features which is very suitable for battery-powered applications. It is RUI3 compatible which allows you to create custom firmware using RUI3 APIs.

Features

  • Based on STM32WLE5
  • System-in-Package form factor
  • RUI3 API compatible
  • LoRaWAN 1.0.3 specification compliant
  • Supported bands: IN865, EU868, AU915, US915, KR920, RU864, and AS923
  • LoRaWAN Activation by OTAA/ABP
  • LoRa Point-to-Point (P2P) communication
  • Easy to use AT Command Set via UART interface
  • Long-range - up to 15 km with optimized antenna
  • ARM Cortex-M4 32-bit
  • 256 kbytes flash memory with ECC
  • 64 kbytes RAM
  • Ultra-Low Power Consumption of 1.69 μA in sleep mode
  • Supply Voltage: 2.0 V ~ 3.6 V
  • Temperature Range: -40° C ~ 85° C
  • Size: 12mm x 12mm x 1.22mm
  • Package: LGA73 type

Application

Specifications for RAK3172 STM LoRaWAN SiP

Frequency band AS923 or AU915 or EU868 or IN865 or KR920 or US915
