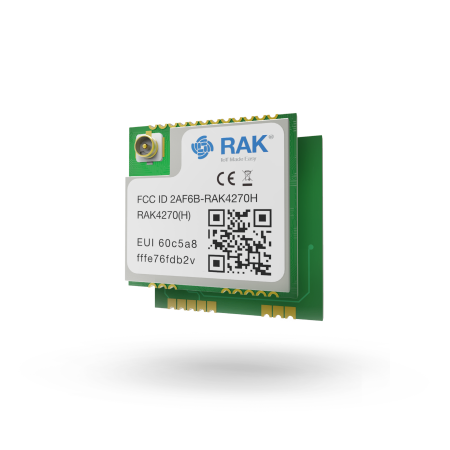

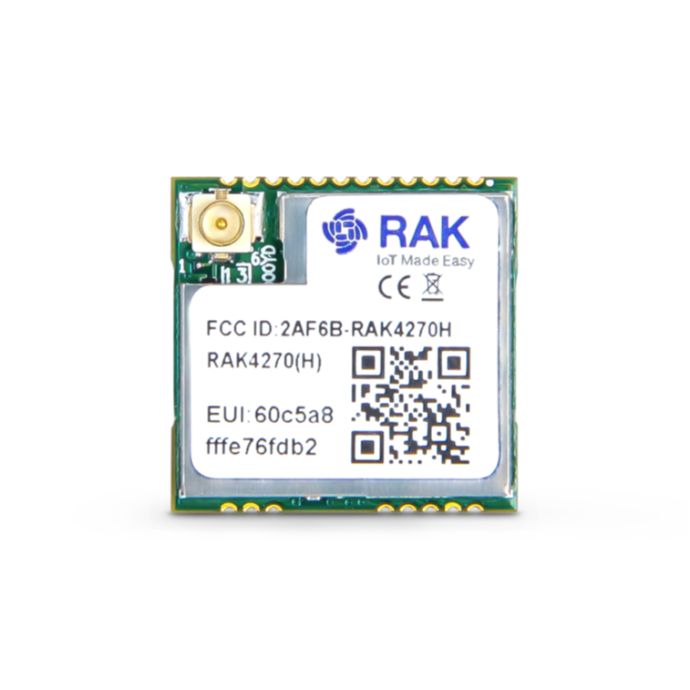

WisDuo LPWAN Module RAK4270

Connector
Configuration Interface
Class
Frequency band
LoRaWAN version
Chipset
Sleep Power consumption
P2P support
Max Transmit power
ARM Cortex
Spread Factor

SG$ 9.36 SG$ 9.36 9.3551 SGD

US$ 6.90

This combination does not exist.

Add to Cart

The RAK4270 LoRa Module includes an STM32L071 MCU and an SX1262 LoRa chip, which supports 8 spreading factors (SF5 ~ SF12) and signal bandwidth that can be adjusted between 7.8 kHz to 500 kHz.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.

Do something

Overview

The RAK4270 LoRa Module includes an STM32L071 MCU and an SX1262 LoRa chip, which supports 8 spreading factors (SF5 ~ SF12) and signal bandwidth that can be adjusted between 7.8 kHz to 500 kHz. It has Ultra-Low Power Consumption of 2.31 μA (down to 1.61 μA @ 2.0 V), but during the Transmit mode, it can reach the maximum output power of 22 dBm. As a receiver, it can achieve a sensitivity of -138 dBm

The module complies with the LoRaWAN® 1.0.2 protocol, so it can be used for implementing LoRa® networks or LoRa® point-to-point communications. The module is suitable for various applications that require long-range data acquisition and low power consumption, such as smart meters, supply chain and logistics tracking, agricultural sensors, smart cities, etc.

This module is expected to be controlled by an external controller through its UART interface by sending a set of AT commands. These AT commands control not only the state of this module but also set the LoRaWan® communication parameters and payloads (see RAK AT Command Manual).

Features

It has Ultra-Low Power Consumption of 2.31 μA (down to 1.61 μA @ 2.0 V)
Perfect for ultra-long transmission
Highly sensitive in LoRa® modulation (~138dBm)
Low Cost
Stronger signal transmission (22dB max@PA_BOOST)
Easy-to-use
LoRa module is suitable for applications in Smart City, Smart Agriculture, Smart Industry.
LoRa bandwidth range of 7.8 kHz to 500 kHz, SF5 to SF12, BR=0.018~62.5 kb/s

Specifications for WisDuo LPWAN Module RAK4270

Antenna
Connector	with IPEX or No IPEX
LoRaWAN
Configuration Interface	USB
Uncategorized
Frequency band	AS923 or AU915 or EU433 or IN865 or KR920 or US915
Class	Class A, B, C
LoRaWAN version	1.0.2
Chipset	STM32L071
Sleep Power consumption	2.31uA
P2P support	Yes
Max Transmit power	22dBm
ARM Cortex	ARM Cortex M0+
Spread Factor	SF5~SF12
