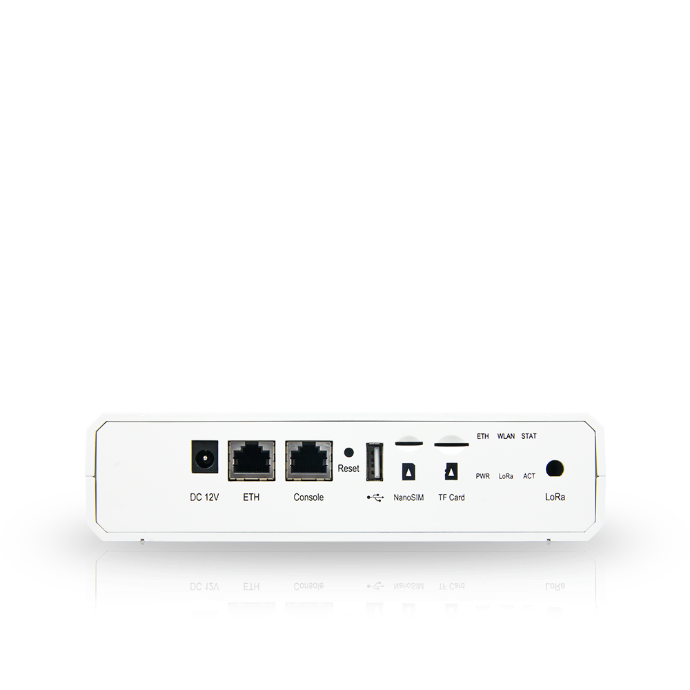

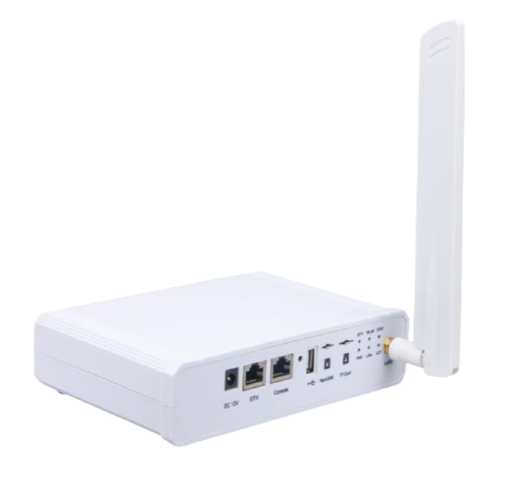

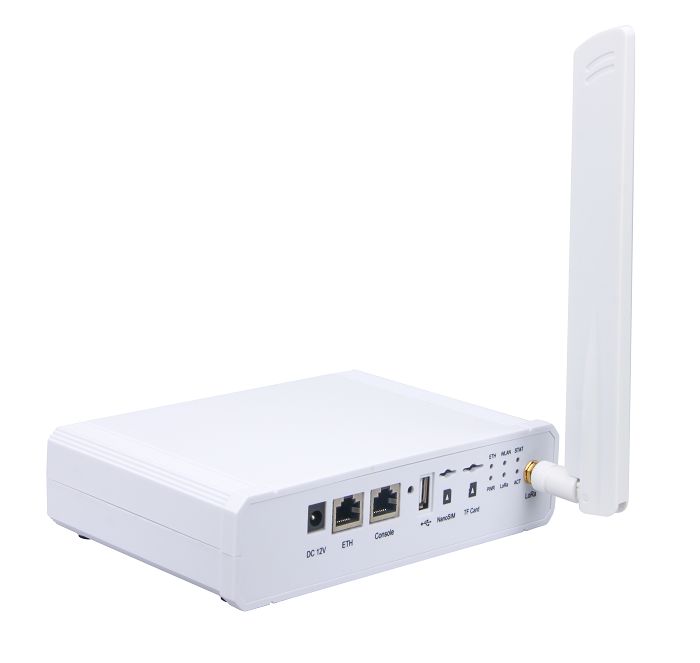

RAK7258 WisGate Edge Lite

  • Frequency band
  • 4G LTE

SG$ 320.47 SG$ 320.47 320.4701 SGD

US$ 249.00

This combination does not exist.

Add to Cart

The RAK7258 Micro Gateway is a full 8-channel LoRa Gateway with built-in Ethernet connectivity for a straightforward setup


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


FIND OUT MORE

Overview

The RAK7258 WisGate Edge Lite is a full 8-channel Gateway with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an on-board Wi-Fi setup that allows it to be easily configured via the default Wi-Fi AP mode.


As with the other RAKwireless Industrial Gateways, it also supports MQTT Bridge mode, with the option for TLS authentication.


Power-over-Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without the need to install additional power lines.


The open-source software for the management and configuration of this gateway device is based on OpenWRT. It has a built-in LoRa packet forwarder and a graphical user interface, allowing for a quick set-up without giving up the freedom of a fully customized solution.


The Gateway has Line-of-Sight (LoS) ranges of up to 15 kilometers, while for highly urbanized environments it can cover more than 2 kilometers. It is a perfect solution for any LoRaWAN use case scenario.


The RAK7258 WisGate Edge Lite package includes a LoRa antenna, mounting screws, and anchors. It is a full 8-channel Gateway with built-in Ethernet connectivity for a straightforward.

Features

  • Full LoRaWAN® Stack support (version 1.0.2)

  • 100M Base-T Ethernet with PoE (802.3 af)

  • Multi back-haul backup with Ethernet, WiFi, Cellular (optional LTE Cat 4)

  • OpenWRT software supports Web UI for easy configuration and monitoring

  • Can integrate with both private (ChirpStack) and public (TTN) Network Servers

  • Built-in LoRaServer for easy deployment of applications and integration of Gateways

  • TF card for log backup

Packaging information

Packaging

  • Product Dimensions: 260mm x 200mm x 50mm
  • Product Weight: 0.4kg
  • Package Inclusions:
    • WisGate Edge Lite
    • LoRa antenna
    • Mounting screws
    • Anchors
    • Power Adapter

Specifications for RAK7258 WisGate Edge Lite

Frequency band AS923 or AU915 or EU868 or IN865 or KR920 or US915
4G LTE without 4G LTE or with 4G LTE
