RAK7268 WisGate Edge Lite 2

Chipset
Frequency band
Waterproof
4G LTE

SG$ 189.37 SG$ 189.37 189.3736 SGD

US$ 139.00

This combination does not exist.

Add to Cart

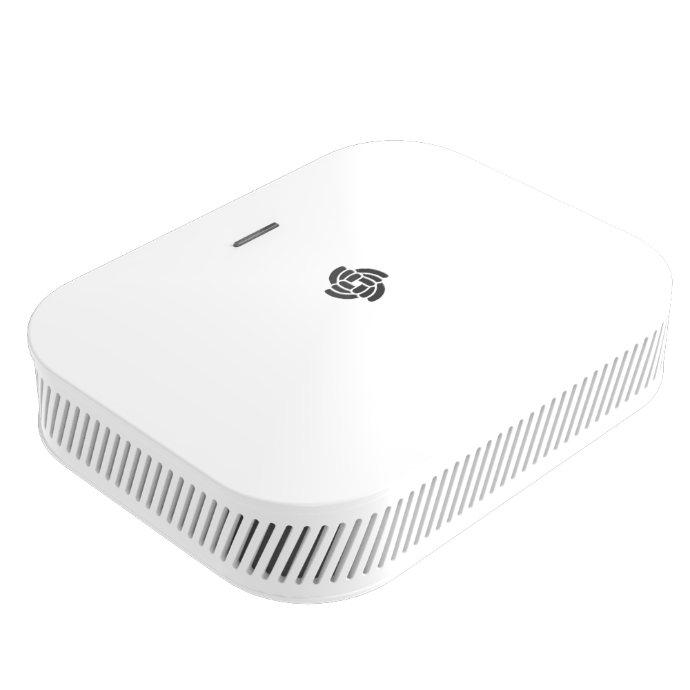

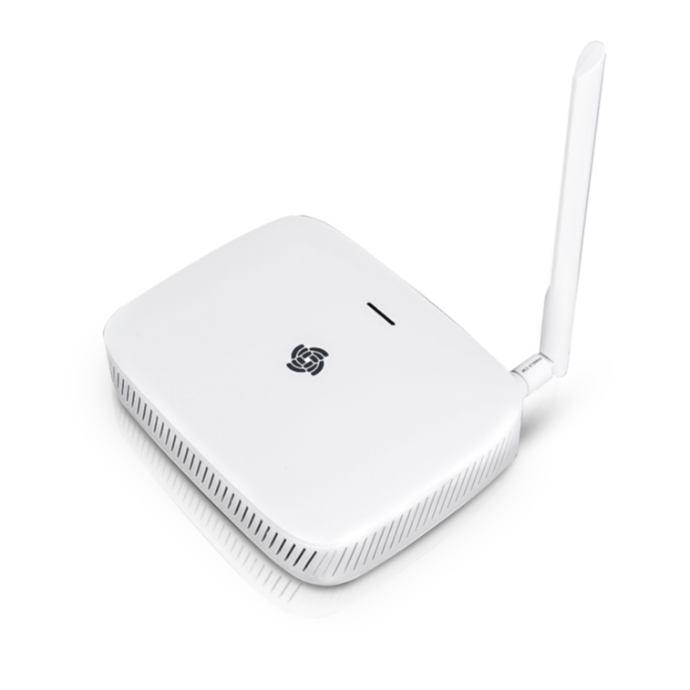

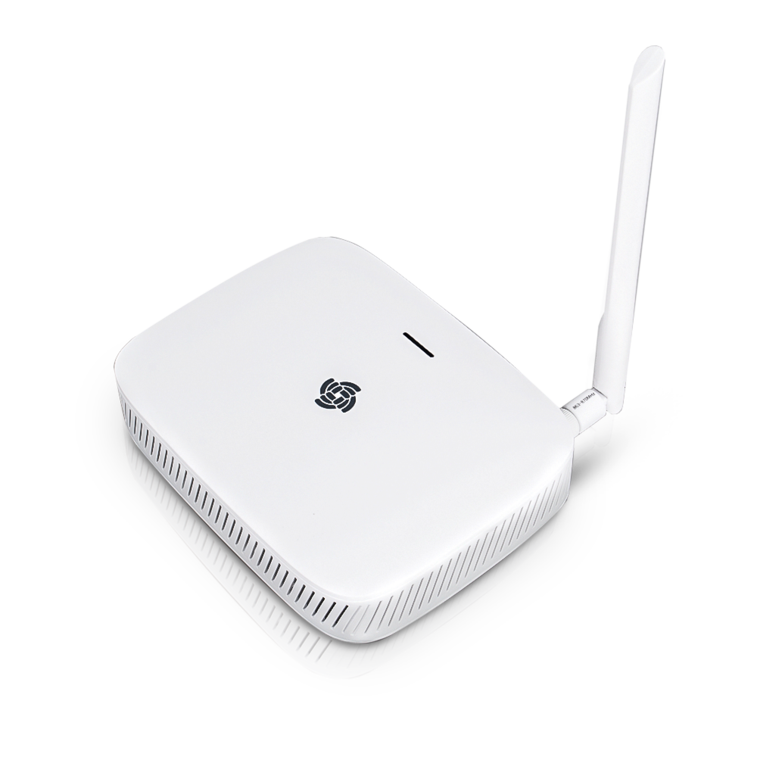

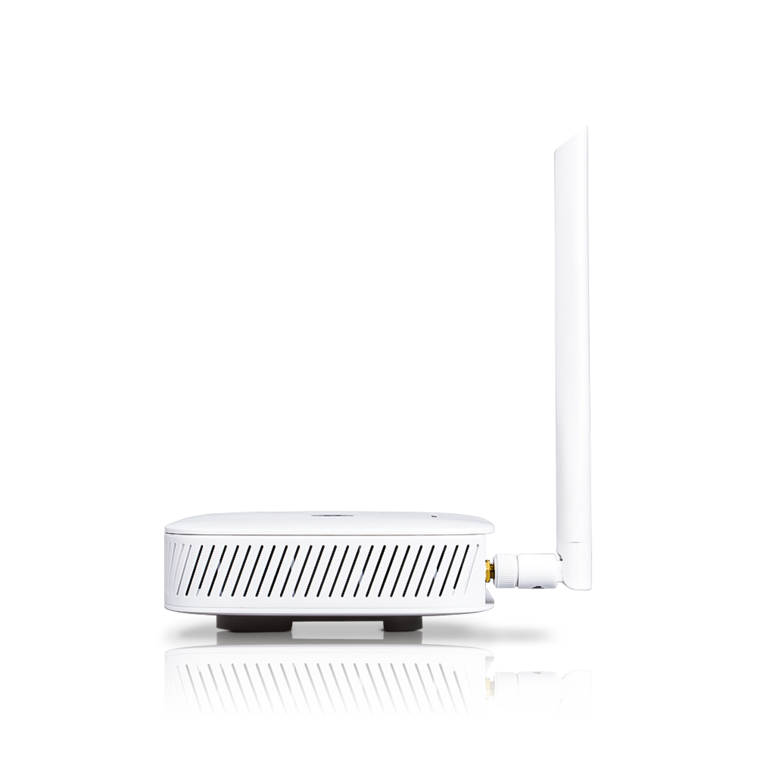

The RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.

FIND OUT MORE

Overview

The RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode. Moreover, the gateway supports LTE uplink communication connections (optional).

As with the other RAKwireless Industrial Gateways, it also supports MQTT Bridge mode, with the option for TLS authentication.

Power-over-Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without the need to install additional power lines.

The open-source software for the management and configuration of this gateway device is based on OpenWRT. It has a built-in LoRa packet forwarder and a graphical user interface, allowing for a quick set-up without giving up the freedom of a fully customized solution.

RAK7268 also supports the MQTT Bridge function, can use the MQTT integrated into third-party platforms.

RAK7268 is especially suitable for small and medium-sized deployment scenarios in industry applications, saving the additional cost for server and R&D investment, and has the advantages of high execution efficiency.

Features

Full LoRaWAN Stack support (V 1.0.3) with Semtech SX1302
Supports 2.4 GHz Wi-Fi AP for configuration
100M Base-T Ethernet with PoE
Multi back-haul with Ethernet, Wi-Fi, Cellular
OpenWRT software supports Web UI for easy configuration and monitoring
Can integrate with both private (ChirpStack) and public (TTN) network servers
TF card for log backup and LoRa frame buffering (in case of backhaul failover)
Built-in Network Server for easy deployment of applications and integration of gateways
LTE Cat 4 network (optional)

Packaging information

1pc WisGate Edge Lite 2/2+
1pc LoRa antenna
1set Mounting screws
1set Anchors
1pc Power Adapter
