RAK811 LoRaWAN Module

Frequency band

SG$ 14.91 SG$ 14.91 14.914000000000001 SGD

US$ 11.00

This combination does not exist.

Add to Cart

With Semtech® SX1276 at its core, the RAK811(WisDuo LPWAN Module) takes advantage of all LoRa® features. Long-range, low power consumption is at its core.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.

FIND OUT MORE

Overview

With Semtech® SX1276 at its core, the RAK811(WisDuo LPWAN Module) takes advantage of all LoRa® features. Long-range, low power consumption is at its core.

Its setup is easy and straightforward. The firmware fully supports the LoRaWAN® 1.0.2 stack. The node can work in a number of modes, with different data rates, and read data from the attached sensors. This is all configurable via AT commands.

Features

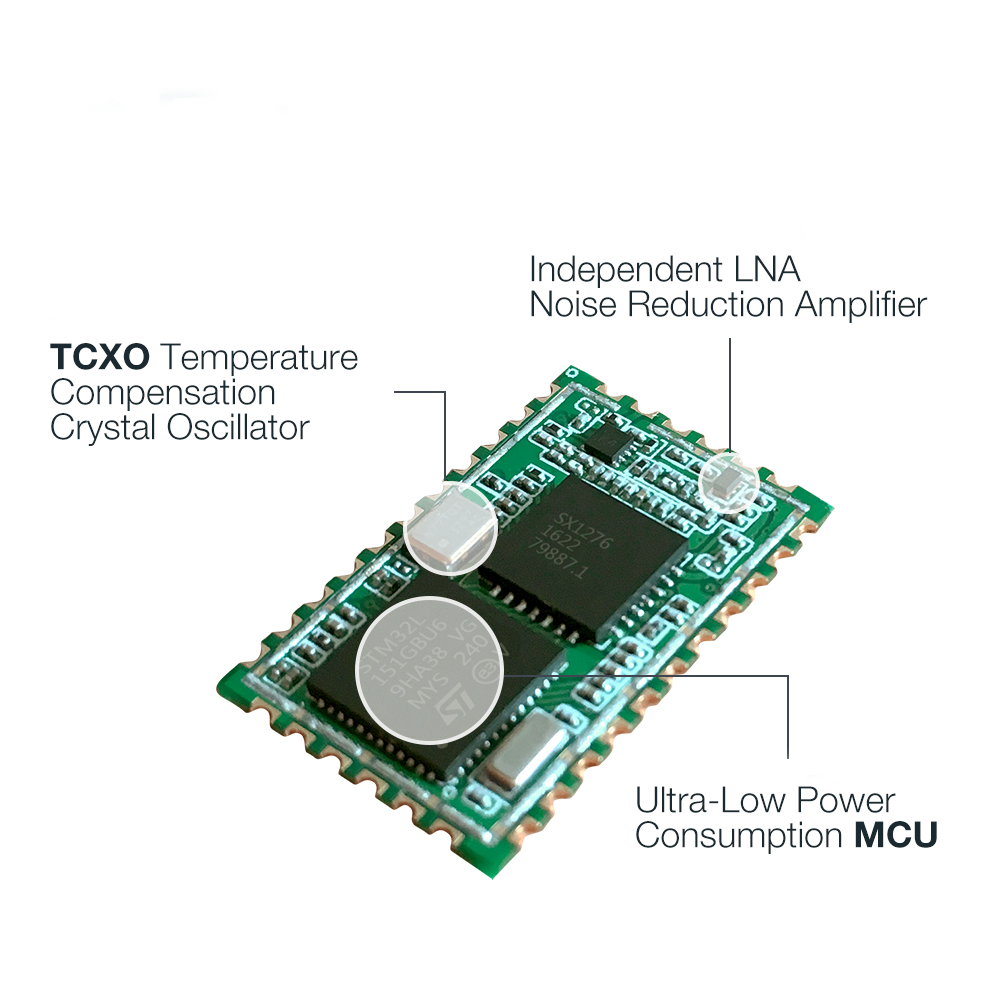

Based on Semtech SX1276
Full LoRaWAN 1.0.2 stack support
Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920, and AS923
Output power: 5 to 20dBm adjustable
High sensitivity: down to -148dBm
Easy to use AT Command Set via UART interface with configurable baud rate.
Theoretical max range of 2km in Urban and 15km in open areas
Operating temperature: -30°C ~ 85°C (industrial grade)
Storage temperature: -40°C ~ 85°C (non-condensing)
