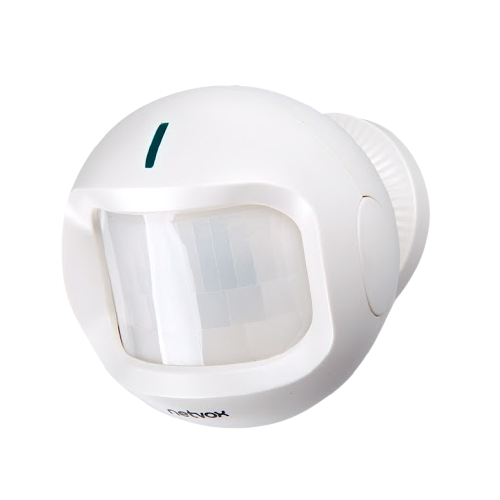

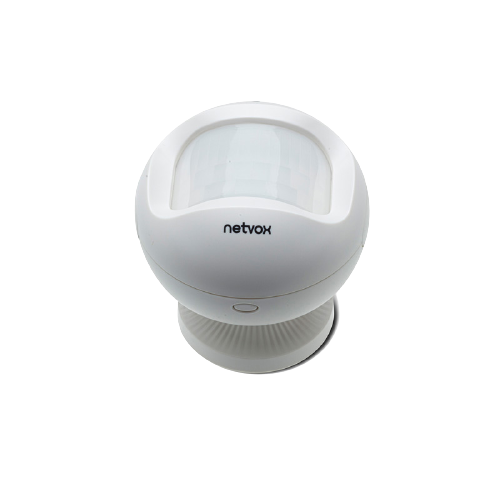

RB11E Wireless Occupancy/Light/Temperature Sensor

RB11E Wireless Occupancy/Light/Temperature Sensor

Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Transmit Power
Chipset
Sensors

SG$ 172.19 SG$ 172.19 172.1887 SGD

US$ 127.00

This combination does not exist.

Add to Cart

RB11E is a Wireless Occupancy/Light/Temperature Sensor for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol. It combines occupancy ,temperature, tamper switch and light sensors that suitable for detecting human movement indoors, illuminance and temperature.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

RB11E is a long distance LoRaWAN™ PIR-Based Device (Class A). RB11E combines motion detection, temperature, and illumination sensors. With real-time motion detection, RB11E senses the movement of people, animal or other objects and if a person or an object moves in the monitoring area, RB11E will detect the infrared signal and report the status information to the gateway. Users can execute different instructions or scenes according to different configurations. RB11E also reports temperature and light level. It is mainly used for indoor detection.

Features

Wireless Range of 10km
LoRaWAN Class A compatible
Frequency Hopping Spread Spectrum (FHSS)
Improved Interference Immunity
Improved Power Management for Longer Battery Life
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
Over-The-Air Updates (Future)
Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
And Set Alerts Via SMS Text And Email (Optional)
Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
Uses SX1276 Wireless Communication Module

Specifications for RB11E Wireless Occupancy/Light/Temperature Sensor

Frequency band	AS923 or AU915 or EU868 or US915
Waterproof	IP30
Class	Class A
Power type	2pcs Of 3.6V ER14505 AA
Sleep Power consumption	110uA
Rx Sensitivity	-136dBm
Transmit Power	16dBm
Chipset	SX1276
Sensors	PIR+Temperature+Light
