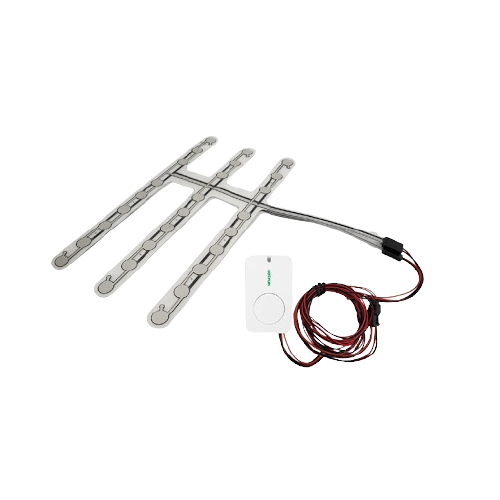

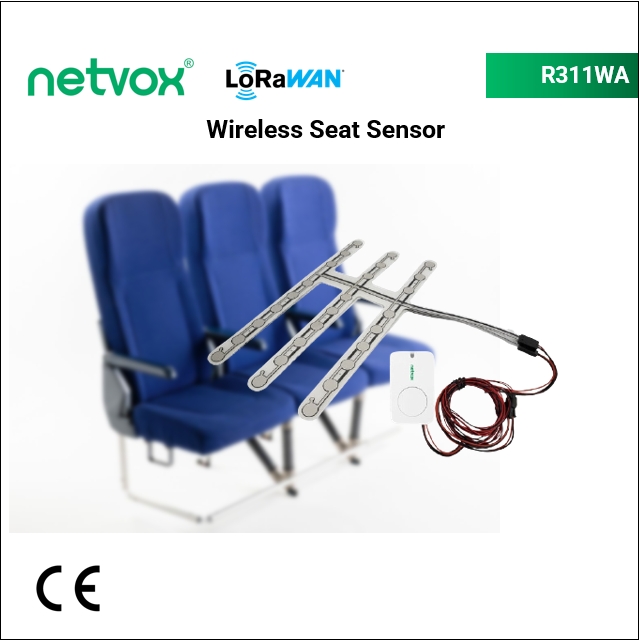

R311WA Wireless Seat Occupy sensor

Configuration Interface
Waterproof
Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Transmit Power
Chipset
Sensors

SG$ 130.16 SG$ 130.16 130.1627 SGD

US$ 100.00

This combination does not exist.

The NETVOX wireless seat sensor (two way) R311WA is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R311WA will send a message to the gateway. When detecting no one on a sensor seat, it will send an normal status message back to the gateway .

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

The NETVOX wireless seat sensor (two way) R311W A is a device that detects the presence of a seat and is compatible with the LoRaWAN protocol. If there is someone on the seat, R311WA will send a message to the gateway. When detecting no one on a sensor seat, it will send an normal status message back to the gateway .

Features

2 section 3.0V CR2450 button batteries in parallel
Adopt SX1276 wireless communication module
Two-way seat sensor
Compatible with LoRaWAN TM Class A
Frequency-hopping spread spectrum technology
Configuration parameters can be configured through a third-party software
platforms, data can be read and alerts can be sent via SMS text and email (optional)
Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
Low power consumption and long battery life
Note*: Battery life is determined by the sensor reporting frequency and other variables.
Please refer to http://www.netvox.com.tw/electric/electric_calc.html
On this website, users can find various types of batteries in different configurations. life

Specifications for R311WA Wireless Seat Occupy sensor

LoRaWAN
Configuration Interface	UART
Uncategorized
Frequency band	AS923 or AU915 or EU868 or US915
Waterproof	IP30
Class	Class A
Power type	2 pcs 3.0V CR2450 button batteries
Sleep Power consumption	12uA
Rx Sensitivity	-136dBm
Transmit Power	16dBm
Chipset	SX1276
Sensors	Occupancy
