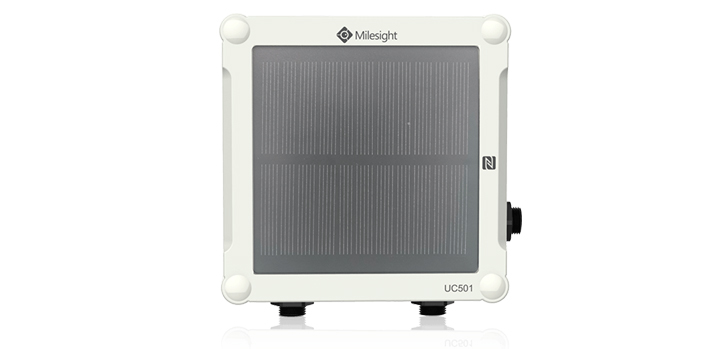

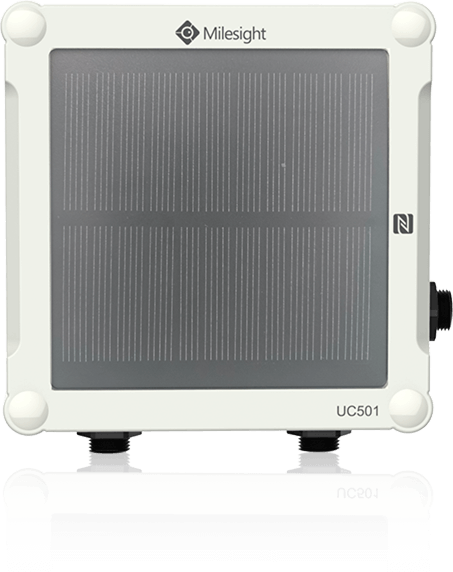

UC501 LoRaWAN Remote Control with Solar panel
Multi-interface Platform for Connecting Sensors
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
Multi-interface Platform for Connecting Sensors
UC500 series is a LoRaWAN® controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports, and so on, which simplify the deployment and replacement of LoRaWAN® networks. UC500 series can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides a solar or built-in battery power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments.
Features
Rechargeable 4900mAh battery with solar panel
IP67 rated enclosure

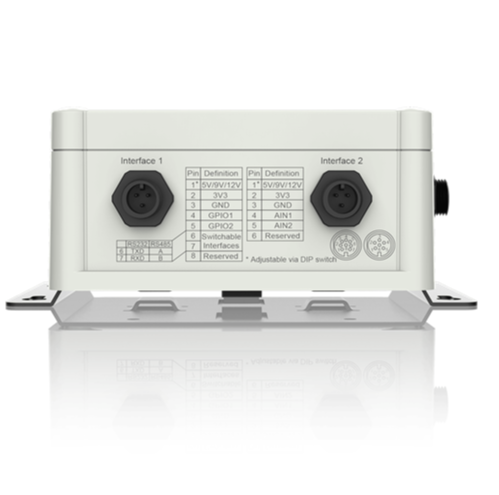

Rich industrial interfaces – RS232/ RS485/ GPIO/ Analog Input
LoRaWAN-based with a range of up to 15km in rural areas and 2km in urban areas
Compatible with industry-standard LoRaWAN gateways
Bridge Modbus data between serial and Ethernet network via LoRaWAN®
Pulse counter feature – allows you to monitor gas, water and electricity consumption or electricity production
Store, manage and analyze your data on the Milesight IoT Cloud (Android & iOS)
NFC for Configuring
Flexible installation – wall & pole mounted
Specifications for UC501 LoRaWAN Remote Control with Solar panel
| Frequency band | AS923 or AU915 or EU868 or IN865 or KR920 or US915 |
| Sensor | Interface |
| Class | Class C/Class A |
| Power type | Battery + Solar panel |
| Configure Tools | USB/NFC |
| Battery | 2550mA chargable |
| Cable length | NA |
