UC502 LoRaWAN Controller

Waterproof
Class
Frequency band
Power type
Configure Tools
Battery Capacity
Cable length

SG$ 198.20 SG$ 198.20 198.2024 SGD

US$ 154.00

This combination does not exist.

Add to Cart

MILESIGHT UC502 LORAWAN CONTROLLER WITH BUILT-IN 190000MAH REPLACEABLE LI-SOCL2 BATTERY

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Milesight

At Milesight IoT, we are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion.

Do something

Overview

UC50x series is a LoRaWAN® controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital

inputs, digital outputs, serial ports, and so on, which simplify the deployment and replacement of LoRaWAN® networks. UC50x series can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides a solar or built-in battery power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments

Features

Non-rechargeable, built-in 19000mAh LiSOCL2 battery
IP67 rated enclosure

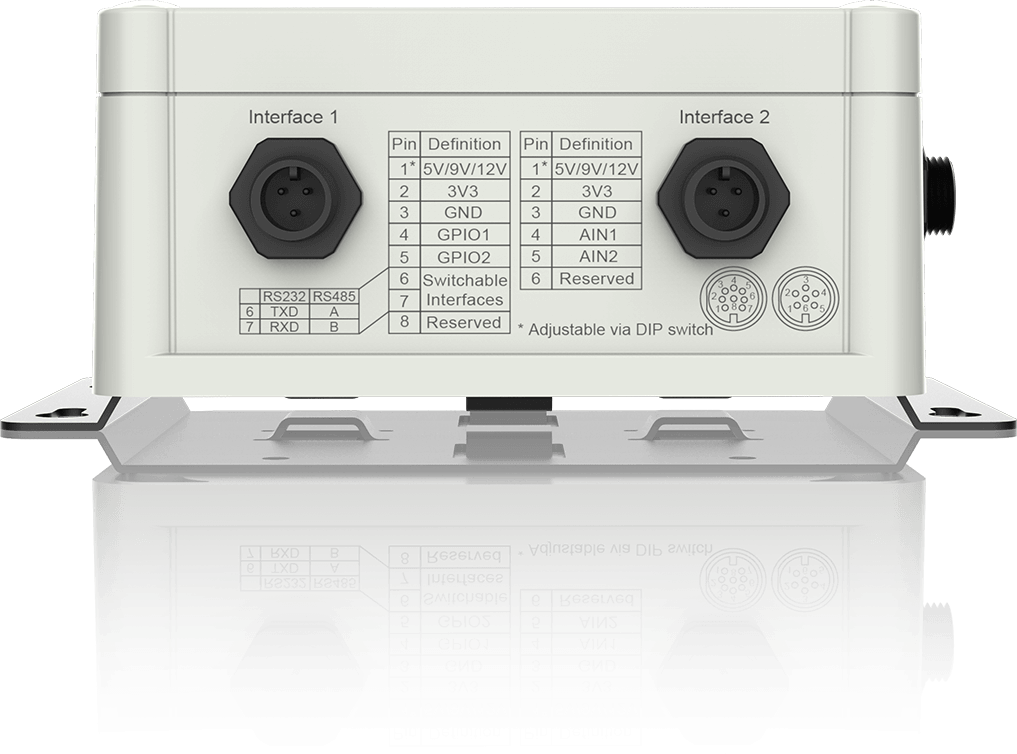

Rich industrial interfaces – RS232/ RS485/ GPIO/ Analog Input
LoRaWAN-based with a range of up to 15km in rural areas and 2km in urban areas
Compatible with industry-standard LoRaWAN gateways
Bridge Modbus data between serial and Ethernet network via LoRaWAN®
Pulse counter feature – allows you to monitor gas, water and electricity consumption or electricity production
Store, manage and analyze your data on the Milesight IoT Cloud (Android & iOS)
NFC for Configuring
Flexible installation – wall & pole mounted

Specifications for UC502 LoRaWAN Controller

Frequency band	AS923 or AU915 or EU868 or IN865 or KR920 or US915
Waterproof	IP67
Class	Class A
Power type	Battery
Configure Tools	NFC
Battery Capacity	19000mAh
Cable length	NA
