USB 2.0 Ranger® 2301 1-Port 100m Cat 5e/6/7 Extender System

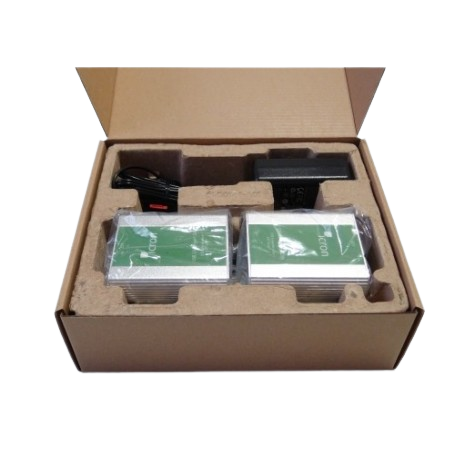

The Ranger 2301 comes with the following items in the box:
Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
100-240V power adapter
Country specific power cord
Quick start guide
*Please be aware that the Ranger 2301 does NOT come with a CAT5e cable.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview

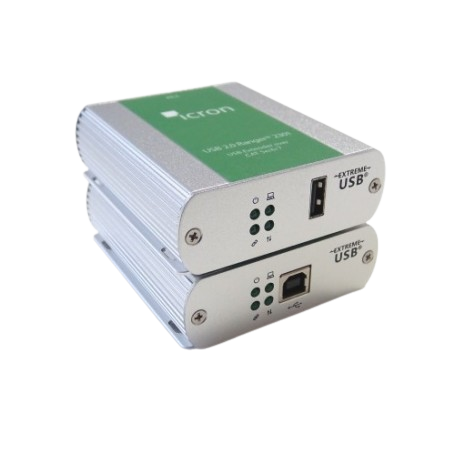

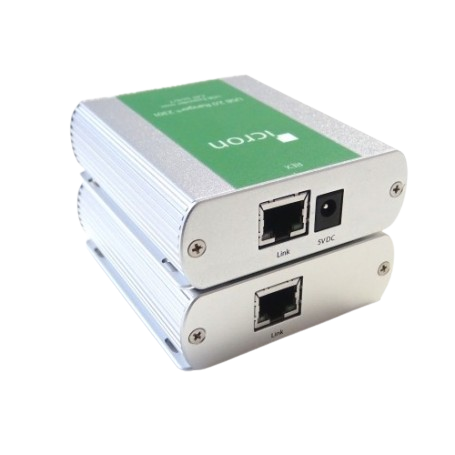

The USB 2.0 Ranger® 2301 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.
This 1-port USB 2.0 extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOSTM, and Linux®
Additionally, this ExtremeUSB® based 1-port USB 2.0 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices.
Features
- 1-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
- Supplies up to 1 Amp to the USB port
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Metal enclosures with FCC/CE Class B certification
- Two-year warranty
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOSTM, and Linux®
Specifications for USB 2.0 Ranger® 2301 1-Port 100m Cat 5e/6/7 Extender System
| USB Extender | |
|---|---|
| USB standard | USB 2.0 |
| Distance | 100m |
| Uncategorized | |
| Power Adapter | Europe or Australia or Japan or North America or Unit Kingdom |
| USB ports | 1 USB ports |
| Transmission Media | CAT 5e/6/7 |
| Power Adapter Location | REX |
